HIGH RELIABILITY AND EMI-SHIELDING IN EXTREME ENVIRONMENTS

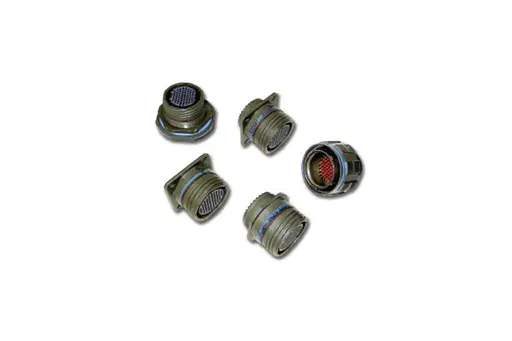

Amphenol‘s TV-CTV Tri-Start MIL-DTL-38999 Series III connectors have high-density contact arrangements in a miniature circular shell. Originally designed for the high-performance requirements of military and commercial aircraft, these circular connectors are perfect for applications requiring extremely reliable interconnections. Amphenol TV-CTV connectors are quick-mating and environmentally-sealed. See our full list of product features for Amphenol TV-CTV Tri-Start connectors in the specifications below.
Features
High-Reliability D38999 - TV style connectors are used in some of the most rigorous environments and must perform flawlessly under wide temperature ranges, high vibrations and be resistant to a vast array of contaminants. Visual confirmation of mating is provided by the plug coupling nut covering a red band on the mating shell.
Outstanding EMI-Shielding Protection These connectors provide excellent signal integrity due to the shielded mating system that utilizes 360-degree shell grounding fingers, providing protection of up to 65 dB at 10 GHz.
Operates at Extreme Temperatures These connectors operate in temperatures from -85°F to +392°F (-65°C to +200°C).
High-Density Connectors If space is at a premium, TV connectors offer up to 128 contacts per connector. Ideally suited for the demands of digital electronics on fly-by wire aircraft, advanced robotics, and critical industrial equipment.
Self-Locking Connector Systems Self-locking coupling nuts and self-locking endbell accessory hardware provide the best performance for threaded connectors in high-vibration applications.
Broad Range of Military and Commercial Accessories Many military-standard endbells to M85049 specifications and a wide array of cable termination styles are available. Straight, 45 and 90-degree endbells come in many styles from cost-effective standard clamp to shielded, environmentally-sealed and everything in between.
Contact Protection TV connectors are designed to be scoop-proof. Pin contacts are recessed to prevent contact damage and contact shorting when connector halves are mated.
MIL-DTL-38999-Approved TV’s are fully-interminable and intermountable with all other manufacturer’s MIL-DTL-38999 series III connectors.
Ground Plane options are now available.
Materials & Finishes
Shell & Plating
Contacts
Copper alloy
Plating
Gold-plated, 50 microinches per MIL-G-45204 type II, grade C, class I
Insulator
Hard dielectric wafer which contains tines for high-reliability retention of crimp contacts
Grommet & Seals
Silicone-based elastomer
Grounding Springs
Beryllium copper (grounded plug only)
Electrical Data
Contact Sizes 22D, 20, 16 and 12
Test Voltage (unmated condition)
Operating Voltage
Current Rating by Contact Size & Wire Accommodation (Test Amps)
Contact Resistance of Mated Contacts End-to-End
Insulation Resistance
5,000 megohms minimum
Mechanical
Operating Temperature
W, W52, RB, J & ZN plating -65°C to 175°C (-85°F to 347°F) DT, F, M, K & S plating -65°C to 200°C (-85°F to 392°F)
Sealing
Against sand, dust per MIL-STD-202 & ice resistance
Wire Sealing Range
Insulation Strip Length
All dimensions in inches (millimeters in parentheses)
Mating Life
500/1,500 cycles minimum
Salt Spray
Finish W: 500 hours per MIL-STD-1334A method 1001 condition C Finish W52: 48-hour Finish F: 48-hour per MIL-STD-1344A method 1001 condition B Finish J & M: 1000-hour per MIL-STD-1344A method 1001 condition C Finish S & K: 500-hour per MIL-STD-1344A method 1001 condition C Finish RB: 500-hour per BS CECC 75201-002 Finish DT, DZ & ZN: 500-hour
Tempature Durability
Finish W: 175°C (347°F), Finish F: 200°C (392°F), mated, wired test period 1000 hours to MIL-STD-1344 Method 1005 Finish DT, M, K & S: 200°C (392°F) Finish J, RB, W52 & ZN: 175°C (347°F)
Crimp, fibre optic, co-ax, twinax, thermocouple or printed circuit
Number of Circuits
1 to 187
Contact Insertion
Rear-insertion/rear-extraction with simple plastic or high-quality metal hand tools
Contact Retention
Per MIL-DTL-38999K tested to MIL-STD-1344A method 2007
Polarization
Five keyways with optional master keyway rotations (Note: insert and main keyways remain fixed)
Approvals
MIL-DTL-38999
Cross-Section
EXCERPT FROM MIL-DTL-38999K
3.43.2 JAN brand. The United States Government has adopted, and is exercising legitimate control over the certification marks “JAN” and “J”, respectively, to indicate that items so marked or identified are manufactured to, and meet all the requirements of military specification. Accordingly, items acquired to, and meeting all of the criteria specified herein and in applicable specifications shall bear the certification mark “JAN” except that items too small to bear the certification mark “JAN” shall bear the letter “J”. The “JAN” or “J” shall be placed immediately before the PIN except that if such location would place a hardship on the manufacturer in connection with such marking, the “JAN” or “J” may be located on the first line above or below the PIN. Items furnished under contracts or orders which either permit or require deviation from the conditions or requirements specified herein or in applicable specifications shall not bear “JAN” or “J”. In the event an item fails to meet the requirements of this specification and the applicable specification sheets or associated detail specifications, the manufacturer shall remove the “JAN” or the “J” from the sample tested and also from all items represented by the sample. The “JAN” or “J” certification mark shall not be used on products acquired to contractor drawings or specification. The United States Government has obtained Certificate of Registration No. 504,860 for the certification mark “JAN”.
Note: The “JAN” or “J” is not part of the PIN but indicates a certification.
