TWO USER-DEFINED POLARIZATION POSSIBILITIES FOR USB-A 2.0 AND 3.0

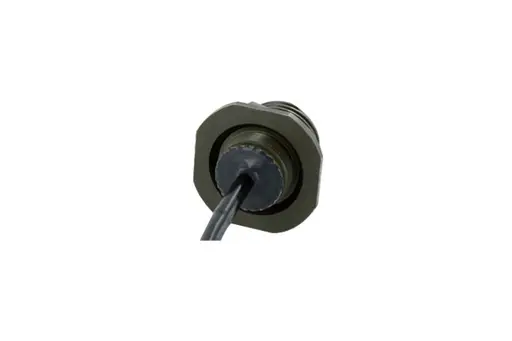

Amphenol USBFTV-A series connectors allow for the use of a USB-A 2.0 and 3.0 data connection in harsh environments. The Amphenol USBFTV-A series RJ Field connectors are metal circular connectors that use a Tri-Start Thread coupling mechanism (MIL-DTL-38999 series III-type) with anti-decoupling device. The Amphenol USBFTV-A series allows for two mechanical coding/polarization possibilities to be defined by the user. These connectors are excellent for harsh environments – the Amphenol USBFTV-A series’ RJStop® connection system protects from shock, dust and fluid. No hazardous on-field cabling and grounding required!

Features

AMPHENOL USBFTV SERIES MAIN CHARACTERISTICS

• Sealed against fluids and dust (IP68)
• Shock, vibration and traction-resistant
• No cabling operation in-field and no tools required
• Improved EMI-protection
• Tri-Start thread coupling mechanism (MIL-DTL-38999 series III-type) with anti-decoupling device
• 2 mechanical coding / polarization possibilities by the user (receptacle insert rotation)
• USBF TV plug retention in the receptacle: 100 N in the axis
• Mating cycles: 500 to 1500

AMPHENOL USBFTV SERIES ENVIRONMENTAL PROTECTION

• Sealing (when mated): IP68 (Temporary immersion)
• Salt Spray: 48-hour with nickel-plating > 500-hour with olive drab cadmium 1000-hour with marine bronze shell
• Fire-retardant / low-smoke: UL94 V0 and NF F 16 101 & 16 102
• Vibrations: 10 – 500 Hz, 10 g, 3 axes: no discontinuity > 1 micros
• Shocks: IK06; weight of 250 g drop from 40 cm [15.75 in] onto connectors (mated pair)
• Humidity: 21 days, 109.4°F (43°C), 98% humidity
• Temperature Range: -40°F to +185°F (-40°C to +85°C)

AMPHENOL USBFTV SERIES DATA TRANSMISSION

• USB 2.0 & 3.0 Specifications
• Data Rate: Up to 480 Mb/s (2.0) or 5g Bit/s (3.0) for high-speed
