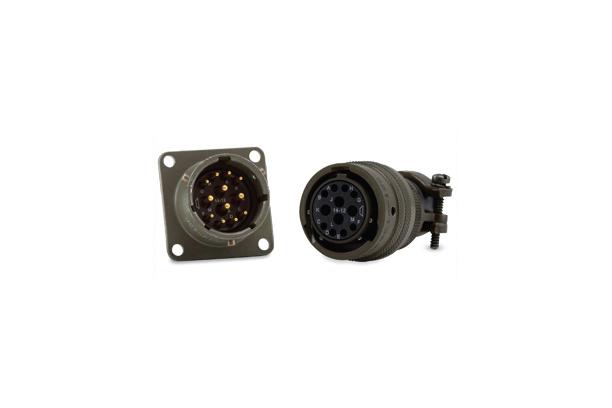

Amphenol PT / PT-SE Connectors (MIL-DTL-26482 Series I)

Model

Series

Connectors


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.


Description



EXTREME EXPOSURE MINI-CIRCULAR CONNECTORS

The Amphenol PT series and PT-SE series connectors (MIL-DTL-26482 Series I) provide high-density contact arrangements in a circular shell. Amphenol PT series connectors offer solder contacts, PT-SE offers high-performance crimp contacts, and PT-CE offers a commercial crimp option. These circular Amphenol PT series connectors provide quick-disconnect bayonet coupling for rapid mating and unmating, and several mounting styles and shell sizes. For full product details on Amphenol PT, PT-CE, and PT-SE series connectors, see our specifications below.

Get shopping! Mil Spec prefixes include MS3110, MS3112, MS3114, MS3116, MS3119, MS3120, MS3122, MS3124 and MS3126. Amphenol's proprietary prefix is PT.





Features

  • Rugged Shell
    Aluminum alloy shell and hardware create a rugged connector with minimal weight. These connectors have been used extensively in commercial, military, and aerospace environments. Standard shells accept all MIL-DTL-26482 accessories.
  • Environmentally-sealed
    Complete moisture sealing is achieved by combining four seals: shell, peripheral, interfacial, and wire. Wire seal is accomplished by multiple ripple design, exceeding the wire sealing requirements of MIL-DTL-26482.
  • Resistant to Military Environments
    These connectors will operate in temperatures from -67˚F to +257˚F (-55˚C to +125˚C) under the harshest possible conditions.
  • Wide Range of Wire Gauges and Current-Carrying Capacity
    Up to 23 amps with wire gauges from 24 to 12 AWG wire.
  • Resilient insulator & grommet
    A resilient neoprene insulator and integrated rear wire sealing grommet guarantees a liquid-tight assembly. Crimp contacts that can be inserted from the rear of the connector are available. Solder contacts are permanently bonded into the insulator.
  • Solder or crimp gold-plated contacts
    PT connector contacts are gold-plated per MIL-G-45204 type II. PT-CE commercial crimp contacts are not military-approved, but the PT-SE crimp contacts are built in accordance to MIL-C-39029. Both types of contacts are crimped with the standard M22520/1 crimp tool. Socket contacts are closed to eliminate damage from test probes and to help prevent misaligned pins during engagement. Contact insertion is from the rear of the connector. When the contact is fully inserted, it snaps securely into retention tines embedded in the insulator. Contact extraction is accomplished from the front with the proper extraction tool. Pressing the tool plunger pushes the contact out through the rear of the connector.
  • Agency Approvals
    MIL-DTL-26482 Series I, UL #E115497, VG95328 or HE301



Materials & Finishes

Shell
Aluminum Alloy

Shell Plating
Cadmium, Anodized, Electroless Nickel, Zinc Alloy, or Grey Zinc Nickel

Contacts
Copper alloy

Contact Platings
Gold-plated, 50 microinches minimum per MIL-G-45204 type II.

Insulator
Resilient neoprene. PT-SE and PT-CE insulators encase a tough plastic wafer with contact retention tines for high-reliability retention of crimp contacts.





Electrical Data

Operating Voltage/Test Voltage

* Each insulator layout has a specific “service rating.”



Current Rating

Wire Range Sizes
24 to 12 AWG (and co-ax)

Contact Resistance
When tested to MIL-STD-1344 Method 3004, will not exceed voltage drops listed in table. Consult MIL-DTL-26482, 3.6.4 for details.

Insulation Resistance
5,000 megohms minimum at 77˚F (25˚C)





Mechanical

Operating Temperature
-67˚F to +257˚F (-55˚C to +125˚C)

Sealing
48 hours in 6 feet of water per MIL-DTL-26482 4.6.14. Meets 10- and 20-day 50-95% humidity testing per MIL-STD-1344 Method 1002.2 per MIL-DTL-26482; Solder Only
Crimp: should have contacts installed in all positions when the connector is wired. Sealing plugs should be installed in the grommet holes when no wire is attached to the contact.

Wire Sealing Range
Per MIL-DTL-26482 1.4





Insulation Strip Length



Mating Life
500 cycles minimum per MIL-DTL-26482 3.6.17

Salt Spray
Unmated connectors and protective covers meet 48-hour exposure to MIL-STD-1344 Method 1001 per MIL-DTL-26482. (Cadmium plating) Olive drab/black zinc, electroless nickel meets 48-hour salt spray test, gray zinc nickel meets 500-hour salt spray test.

Heat
+221˚F (+105˚C) for 1,000 hours per MIL-DTL-26482

Chemical Resistance
20-hour full-immersion unmated in hydraulic fluid and lubricating oil per MIL-DTL-26482.

Vibration
10 to 2,000Hz (15g’s) 10 microseconds maximum discontinuity. To MIL-STD-1344 Method 2005 per MIL-DTL-26482.

Shock
50g’s, 11ms duration, three major axes. 10 microseconds maximum discontinuity. To MIL-STD-1344 Method 2004 per MIL-DTL-26482.

Contact Type
Solder, crimp, printed circuit, co-ax, high voltage, first-mate last-break

Number of Circuits
PT: 1 to 61; PT-SE & PT-CE: 2 to 61

Contact Insertion (Crimp)
Insertion from the rear of connector with simple hand-tool. Front release with appropriate extraction tool.

Contact Retention
To MIL-STD-1344 Method 2007 per MIL-DTL-26482.



Polarization
Five keyway, three-point bayonet with optional rotational polarization. See here for solder, and here for crimp.

Approvals
MIL-DTL-26482 Series I
UL #E115497
VG95328 or HE301



All dimensions in inches (millimeters in parentheses)









AMPHENOL PT/PT-SE SERIES EXERPT FROM MIL-DTL-26482H

3.7.4 JAN and J Marking. The United States Government has adopted and is exercising legitimate control over the certification marks “JAN” and “J”, respectively, to indicate that items so marked or identified are manufactured to, and meet all the requirements of specifications. Accordingly, items acquired to, and meeting all of the criteria specified herein and in applicable specifications shall bear the certification mark “JAN” except that items too small to bear the certification mark “JAN” shall bear the letter “J”. The “JAN” or “J” shall be placed immediately before the PIN except that if such location would place a hardship on the manufacturer in connection with such marking, the “JAN” or “J” may be located on the first line above or below the PIN. Items furnished under contracts or orders which either permit or require deviation from the conditions or requirements specified herein or in applicable specifications shall not bear “JAN” or “J”. In the event an item fails to meet the requirements on this specification and the applicable specification sheets, the manufacturer shall remove completely the military PIN and the “JAN” or the “J” from the sample tested and also from all items represented by the sample. The “JAN” or “J” certification mark shall not be used on products acquired to contractor drawings or specification. The United States Government has obtained Certificate of Registration Number 504,860 for the certification mark “JAN” and Registration Number 1,586,261 for the certification mark “J”.
