AMPHENOL

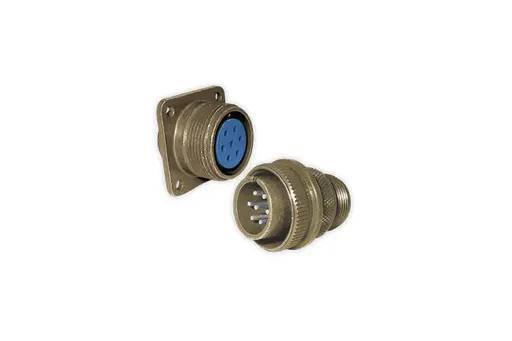

Amphenol 97 Series Connectors

Model

Series

Connectors

Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.

Description

MATES WITH ALL THREADED COMMERCIAL SAE-AS50151 (MIL-DTL-5015) CONNECTORS

Amphenol 97 series connectors are a durable, cost-effective commercial SAE-AS50151 (MIL-DTL-5015) connector available in a variety of shell styles, sizes, contacts, and layouts. Contacts are silver-plated with pre-tinned solder cups. These Amphenol 97 series connectors are excellent for industrial applications including robotics, machine tools and welding. For full product information on Amphenol 97 series connectors, please see the specifications below.

Get shopping! Amphenol 97 series connector industrial prefixes include 97-3100A, 97-3102A, 97-3106A and 97-3108B.

Features

Cost-effective
Solder termination
UL-recognized and CSA-certified
Wide selection of shell styles and insert patterns
Wide variety of connector finishes
Threaded coupling, hard dielectric inserts
Solid or split-shell construction

Materials & Finishes

Shell

Aluminum alloy

Shell Plating

Olive Drab Chromate, Clear Chromate Coating over Cadmium Plating to QQ-P-416, Black Alloy, Conductive Black Alloy, Electroless Nickel, Green Zinc, Gray Zinc Nickel

Contacts

Brass or copper alloy

Contacts Platings

Silver plating to ASTM B700 (solder contacts have tinned solder pot) gold plating to ASTM B488

Insulator

Diallyl phthalate (blue color)

Electrical Data

Operating Voltage/Test Voltage

* Each insulator has a specific rating. These numbers should be used by the designer only as a guide.

97 series connectors show no evidence of breakdown when the given test voltages are applied between the two closest contacts and between the shell and the contacts closest to the shell for a period of one minute, per MIL-STD-1344 Method 3001.

Current Rating & Contact Resistance

Maximum total current to be carried per connector in wire bundles as specified in MIL-W-5088. Contact resistance when tested to MIL-C-39029 will not exceed voltage drops listed in above table.

Mechanical

Wire Range Sizes

26 to 0 AWG

Contact Resistance

See Table

Insulation Resistance

> 5,000 megohms at 77°F (25°C) per MIL-DTL-5015, 3.18

Mating Life

100 cycles minimum per MIL-DTL-5015, 3.16

Salt Spray

MIL-STD-1344 Method 1001 Condition B minimum (Cadmium) 48 hour, Gray Zinc Nickel 500 hours

Heat

+257˚F (+125˚C) for 60 hours, +185˚F (+85˚C) for 1,000 hours per MIL-DTL-5015, 4.6.14, minimum

Chemical Resistance

20-hour full immersion (unmated) in hydraulic fluid and lubricating oil per MIL-DTL-5015 minimum

Vibration

10 to 2,000Hz (15g’s) 10 microseconds maximum discontinuity to MIL-STD-1344 Method 2005 per MIL-DTL-5015

Shock

50g 11 millisecond duration, three major axes 10 microseconds maximum discontinuity to MIL-DTL-5015, 3.13

Contact Type

Solder (hard silver or gold plating), High Voltage

Number of Circuits

1 to 52

Contact Retention and separation forces to MIL-DTL-5015, 4.6.6 & 3.26 minimum.

Polarization

Integral key and keyway plus optional rotational polarization.Click here for valid rotations.

Approvals/Agency Listing

UL# EII5497; CSA LR69183 for 97 Series
