지금 보고 계신 제품의 제조사에요
(주)운영
제조사
(주)운영[바로가기]
제품 타입
기계
브랜드
-
SKU
131763
제품명
노이즈필터 단상 고급형
모델명
WYFS06T1B, WYFS10T1B, WYFS15T1B, WYFS20T1B, WYFS30T1B, WYFS06T1BD, WYFS10T1BD, WYFS15T1BD, WYFS20T1BD, WYFS30T1BD
사이즈
-
중량
-
제품 상세 정보
| Model No | WYFS06T1B WYFS10T1B WYFS15T1B WYFS20T1B WYFS30T1B WYFS06T1BD WYFS10T1BD WYFS15T1BD WYFS20T1BD WYFS30T1BD |
|---|---|
| TYPE | 단상 250V 고급형 (KC) |
| 인증서(Certification) | |
| 정격(Rating) | 250V |
| 입력(Input) | 250V |
| 출력(Output) | |
| 용량(Capacity) | 6A 10A 15A 20A 30A |

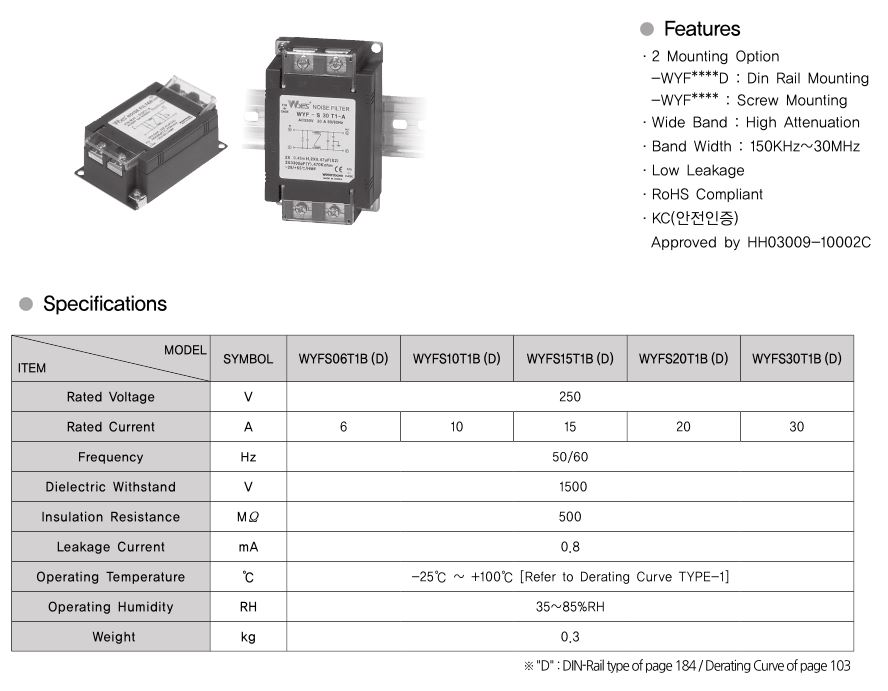

사양 및 특징
ㆍ2 Mounting Option
- WYF****D : Din Rail Mounting
- WYF**** : Screw Mounting
ㆍWide Band : High Attenuation

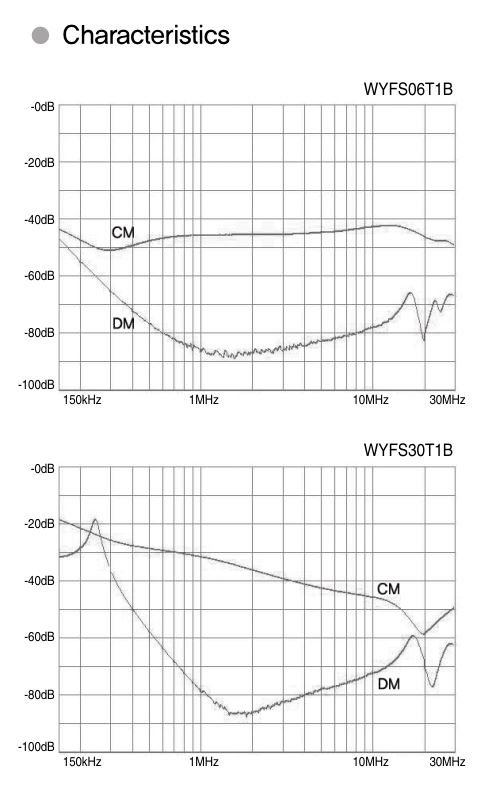

ㆍBand Width : 150KHz~30MHz
ㆍLow Leakage
ㆍRoHS Compliant
ㆍKC(안전인증) Approved by HH03009-10002C
