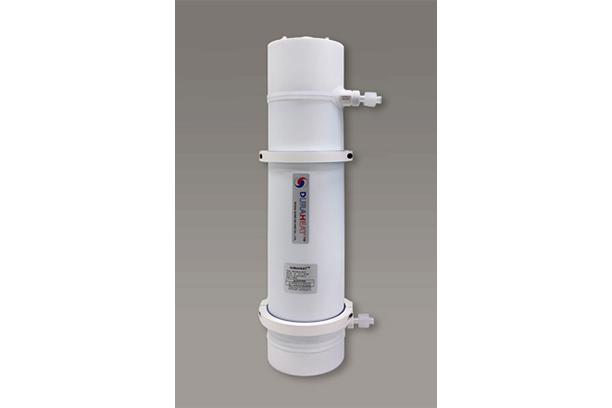

DURAHEAT ID In-Line Heater

The DURAHEAT IPA In-Line Heater provides high purity and safety heating of IPA and solvent through indirect contact for semiconductors.



Specifications_0.5KW

• Size : ø76 x 310mm(H)
• Heater : 0.50KW, 208V, 2.4 AMPS
• Ramp Up Time 5.6 min for IPA 0.135 LPM & AT 60°C
• Temp. Tolerance : ±0.5°C
• IPA Tube : PTFE, 1/8″, 3/8″ Custom connections available
• Housing Material : SUS 304
• Pressure Rating : 5Kg/Cm G@80°C
• ΔP≤0.2Kg/㎠ @ 0.135 LPM -1/8″
• High-limit TC : “k: Type (175°C Max)
• AL Body TC: Pt. 100Ω (125°C Max)
• Fuse : 167°C
• Insulation : 15mm
• Surface Temp., : 58°C Max



Specifications_6.0KW

• Dimension : ø160 x 650mm(H)
• Heater : 6.0kW (2.0kWx3ea), 208V, 3ø
• Heater Body Material : Aluminum+PEO COATING
• Housing Material: PTFE
• Tube Material : PTFE
• Temp. Tolerance: ±0.5°C
• IPA In/Out Nozzle Size: W4, (1/2″)
• N₂ Purge In/Out Nozzle: W, (1/4”)
• (2kPa Max. Slightly Positive Press)
• Design Pressure: 5.0 KG/C㎡G@80°C
• Pressure Loss ≤ 0.6kg/C㎡G@10LPM
• AL Body Sensor: “K”-Type
• AL Body Bimetal: 200°C Max
• Surface Temp. : 60°C Max
• Warranty: 1 Year
