  • 맥스디지털테크(주)

    맥스디지털테크(주)

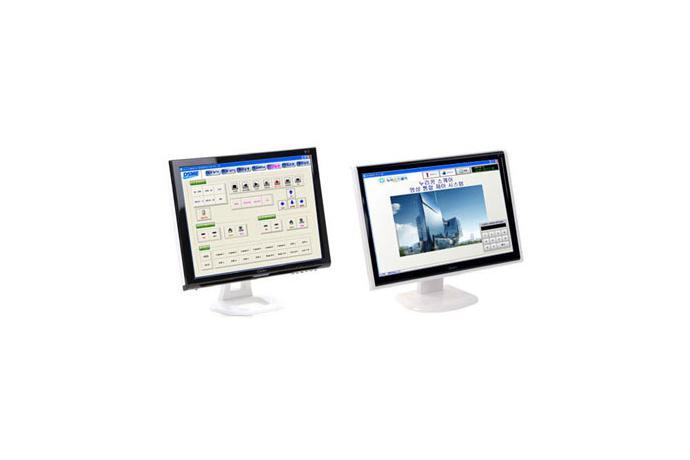

    Touch Panel
    모델
    MTS-19-1
    시리즈
    MDTC Control System

    제품 소개

    1. 개 요

    ○ 본 Touch Panel은 19형으로 Control PC, Main Control Unit (MMCU-100S,150S,200S,
        250S,300S 등.)에 연결하여 프로그램에 의한 시스템제어를 위하여 사용하는 장비이다.

    ○ Lcd Touch Panel은 PC 본체와 USB 통신포트를 사용하여 Key Board와 Mouse가
        없이도 사용할 수 있는 Touch Panel Monitor 이며, 5선 압력식 방식이다.



    2. 외형도

    맥스디지털테크(주) Touch Panel MTS-19-1 1



    3. 성능 및 규격

    ○ General Part
      - Features : 19TS-RT (압력식)
      - LCD : 19형 LCD
      - Display colors : 16.7million colors
      - 수평/수직주파수 : 30 ~ 81KHz/50 ~ 75Hz
      - 해상도 : 1280*1024
      - 밝기 : 300cd/m²
      - 명암비 : 700 : 1
      - 반응속도 : 8ms
      - Plug & Play지원 : VESA, DDC1, 2B
      - Pixel pitch : 0.294mm
      - 입력신호 : RGB Analog, DVI
      - 터치스크린 : 5선 압력식 (USB)
      - 안전규격 : MIC, UL, FCC, CE
      - 시야각 : 150/135(H/V)

    ○ Power Part
      - Power source : AC100-240V , 50/60Hz/DC 12V, 4A/35W
