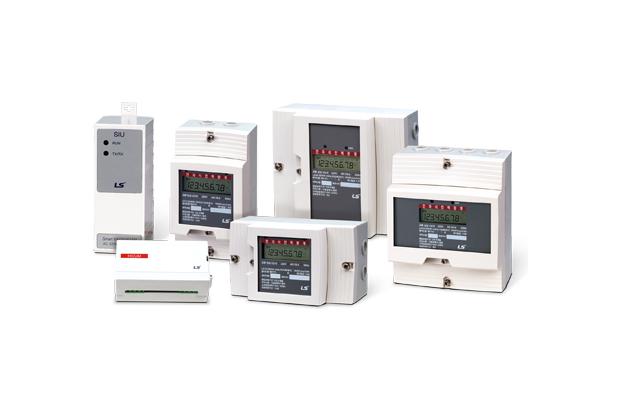

AMRS (Automatic Meter Reading System)

Meter reading center in a management office automatically and remotely reads electricity, gas, water, hot water, etc. usage meters installed in apartments or offices. The management office can conveniently retrieve and print the meter data without physically visiting the sites.



Features


Features

ㆍQuick and accurate meter measurements

ㆍEfficient meter management by providing various information using meter data

ㆍCheck meter reading data directly in each household through web services (When applying web services)

ㆍUp to 128 HCUM Management and Automatic Meter Reading



Function

ㆍMonthly, daily, and real-time trend graph display

ㆍMonitor total household daily/monthly usage

ㆍMonitor usage trend of individual household hourly/daily

ㆍSearching abnormal unit within a selected period

ㆍSave data in excel format

ㆍPrint data



Specifications

HCUM D/A (Home Control Unit Module)

ㆍCollect and provide data of remote unit measurement type electronic power and facility meters (gas, water, hot water, heating, cooling)

ㆍCollect data of electronic power and facility meters every minute or in real time and sending the meter data upon request of the SIU

ㆍCommunication method: RS-485 9,600bps (19,200, 38,400bps may be set)

ㆍSelf-diagnosis function through the internal LED (communication status, operation status, error status, etc.)

Rating HCUM-D HCUM-A
Rated voltage DC12V (Supply from electricity meter)
Power consumption Less than 2W
Mounting type Wall mount type
Service temperature -25℃ ~ 60℃
Outage compensation (Pulse cognition) - 72 hours
Battery fully charged - 48 hours
Meter port D-PLC port 2EA (Common) Pulse cognition port 4EA
Meter data Electricity (forward and reverse active power), gas, water, hot water, heating, cooling
Communication port RS-485 Port 1EA (Power Supply Cable, for remote type power meter)
RS-485 Port 2EA (Common circuit, for SIU / HCU communication)
RS-485 Port 1EA (Spare, for EMS communication)
Material Body / Cover : Poly carbonate (White)
Size 105(W) x 58(H) x 47(D)
Weight 100g 160g



HCUM C (Home Control Unit Module-Compatible)

ㆍCollect and provide data from existing TTL type remote electronic power (transformer) and facility meters

ㆍCollect data of the electronic power meter and facility meters every minute and sends meter data upon request of the SIU

ㆍCommunication method: RS-485 9,600bps (19,200, 38,400bps can be set)

ㆍFully compatible with older CCU meter sites

Rating HCUM-C(A4) HCUM-C(AR) HCUM-C(DS) HCUM-C(DR) HCUM-C(ON) HCUM-C(OR)
Rated voltage AC220V
Power consumption Less than 3W
Mounting type Wall mount type
Type General type General /
Router type
General type General /
Router type
General type General /
Router type
Service temperature -25℃ ~ 60℃
Outage compensation (Pulse cognition) 72 hours -
Battery fully charged 48 hours -
Meter port Pulse: 4port Pulse: 5port DC-PLC: 2port (Common)
Meter function Pulse type analog meter DC-PLC type digital meter
Open Collector pulse cognition LS protocol (DS / Daesung) Third Party Protocol (ON / Omni)
Meter data Electricity, Gas, Water, Hot Water, Heating (All 5) Electricity, Gas, Water, Hot Water, Heating, Cooling (6 types) Electricity, Gas, Water, Hot Water, Heating (All 5)
HCUM-C(AR) provides additional cooling meter (All 6)
Communication type SIU: RS-485 SIU: RS-485
Meter: Pulse cognition Meter: DC-PLC
Communication distance SIU: 1.2km (9,600bps, Shielded cable communication standards), Meter: Within 50m
Communication speed SIU: 9,600bps SIU: 9,600bps
Meter pulse cognition: >30msec Meter: 2,400bps Meter: 4,800bps
Material Body / Cover : Poly carbonate (Gray / white)
Size 44(W) x 108(H) x 56(D)
Weight 260g ~ 280G



SIU (Smart Interface Unit)

ㆍData bridge device between meter reading servers and meter reading devices

ㆍManage and operate up to 128 households of HCUMs per SIU

ㆍCommunication method: RS-485 9,600bps (19,200, 38,400bps can be set)

ㆍSelf-diagnosis function (communication status, data storage status, etc.)

Rating Specification
Rated voltage 220VAC 60Hz±10%
Power consumption 2W or less
Mounting type Wall mount type (Screw & Din-rail)
Service temperature -25℃ ~ 60℃
Display Power Status LED (On / Off) Communication Status LED (Up / Down Link)
Save meter data 24 hours x 31 days x 128 HCUMs
Material Poly carbonate (White)
Size 40(W) x 107.5(H) x 55.5(D)
Weight 130g
