제품명 Double Machine
모델명 KILM-72AV, KILM-84AS, KILM-108V, KILM-72AV,KILM-84AV,KILM-108, KPB-2TIV, KPB-4TV, KDMJ-72V, KYPL-V
시리즈 환편기
카탈로그
제품소개

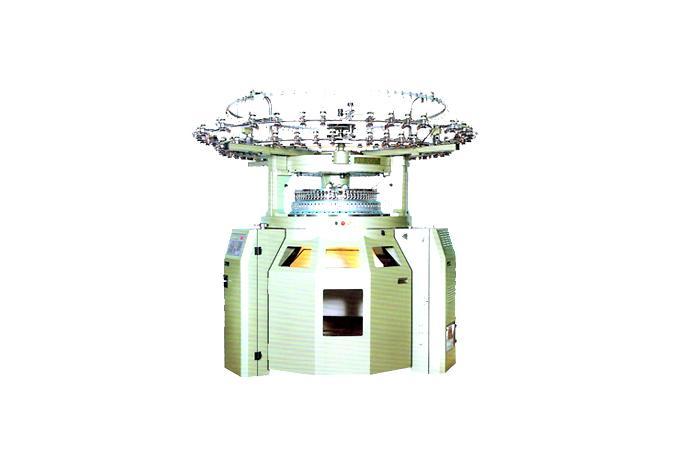

High speed multi-purspose double knit machine with a wide range of stitch and top quality finish. All of these furnish high production and easy pattern changing.

KILM-72V : 2track cylinder, 2track dial cams.
KILM-72VA : 4track cylinder, 2track dial cams.

FABRIC POTENTIAL
KILM-72V : interlock, Double single pique, Mock Rodier, Milano Rib, Ponte de Roma, Reversible plating
KILM-72AV : Single pique, Interlock, Eightlock, Swiss pique, French pique, Milano Rib, Ponte di roma, Lacoste, and Flat back rib.


KILM-AV SERIES (EIGHT-LOOK MACHINE)
INTERLOCK CIRCULAR KNITTING MACHINE WITH UP TO MULTI-FEEDERS PERDIAMETRICAL INCH FOR THE PRODUCTION OF BODY-SIZE YARD GOODS FROM 12 INCH TO 22 INCHES IN DIAMETER.

INTER GRATED CONTROLLER

- Fully integrated driving control mode with character and graphic
- Self-diagnosls and alarm function
- Auto take-down tension and speed control system. Easy setting and bar-graphic digital indicating for all functions

KILM-84V, KILM-84S
High production multi-purpose in rib or interlock knitting machine with the widest stitch range and top quality finish.

KILM-84V: 2 track cylinder, 2track dial cams.
KILM-84AS: 4 track cylinder, 2track dial cams.
Each Delayed and Synchronized timing cams compartmentalized will be supplied to knit any knits of fabric structures. This unique model is develoed for this special purpose.

STANDARD SPECIFICATIONS
- Cylinder diameter, needles per inch, number of feeds as described above, so please order the machine according to requrments.
-AC motor with inverter control unit.

- Dial and cylinder needle detectors.
- Positive yarn feeding device.
- Tube-side creel with double tie
- Venti-Cleaner.
- Oil mist lubricator for needle and cams with dust blower.
- Spreader size ring system.
- Speed of machine is depending upon yarn used, knitting condition, gauge etc, the machine speed can be either increased or decreased, So please select the optimum speed for the machine according to machine condition, The speed figures on this table are given only as guide

PACKING DIMENSIONS




High speed multi-purpose double knit machine with a wide range of stitch and top quality finish, All of these furnish high production and easy pattern changing.

KILM-72V : 2track cylinder, 2track dial cams.
KILM-72VA : 4track cylinder, 2 track dial cams.

FABRIC POTENTIAL
KILM-72V: interlock, Double single pique, Mock Rodier Milano Rib, Ponte de Roma, Reversible Plaiting.
KILM-72VA: Single pique, interlock Eightlock, Swiss pique, French pique, Milano Rib, Ponte di roma, Lacoste, and Flat back rib

KILM-AV SERIES(EIGHT-LOOK MACHINE)
INTERLOCK CIRCULAR KNITTING MACHINE WITH UP TO MULTI-FEEDERS PERDIAMETRICAL INCH FOR THE PRODUCTION OF BODY-SIZE YARN GOODS FROM 12INCH TO 22 INCHES IN DIAMETER.

INTER GRATED CONTROLLER

- Fully integrated driving control mode with character and graphic.
- Self-diagnosis and alarm function.
- Auto take-down tension and speed control system, Easy setting method and bar-graphic digital indication for all functions.

PACKING DIMENSIONS

KILM 84V, KILM-84AV
High production multi-purpose in rib or interlock knitting machine with the widest stitch range and top quality finish.

KILM-84V : 2track cylinder, 2 track dial cams.
KILM-84VA : 4track cylinder, 2 track dial cams.

Delayed timing is standard, To change from delayed to synchronized timing, there is no need to exchange the yarn carries and cams.

STANDARD SPECIFICATIONS
- Cylinder diameter, needles per inch, number of feeds as described above, so please order the machine according to requrments.
- AC motor with inverter control unit.

- Dial and cylinder needle detectors.
- Positive yarn feeding device.
- Tube-side creel with double tie.
- Venti-Cleaner.
- Oil mist lubricator for needle and cams with dust blower.
- Spreader size ring system.
- Speed of machine is depending upon yarn used, knitting condition, gauge etc, the machine speed can be either increased or decreased, So please select the optimum speed for the machine according to machine condition, The speed figures on this table are given only as guide.




This model's cam system has been manufactured with completely closed cam system in such way to allow high operational speed. With the best stitch formation and high quality Rib fabric which is utilized for the outer wear garments production and for underwear


STANDARD SPECIFICATIONS
- Cylinder diameter, needles per inch number of feeds are as described above, so please order the machine according to requirments.
- AC motor with inverter control unit.
- Dial and cylinder needle detectors.
- Positive yarn feeding device,
- Tube-size creel with double tie.
- Oil mist fubricator for needle and cams with dust blower.
- Spreader size ring system.
- Speed of machine depending upon yarn used, knitting condition, gauge etc, the machine speed can be either increased or decreased, So please select the optimum speed for the machine according to machine condition.
The speed figures on this table are given only as guide.

OPTIONAL PARTS.
- Additional cams when increasing cam in the cylinder and dial for fabric potential.
- Plating fabrics can be knitted provided yarn carrier.
- Knitting Lycra in plating construction by using Memminger MER system




The model's cam system has been manufactured with completely closed cam system in such way to allow high operational speed, with the best stitch formation and high quality Rib fabric which is utilized for the outer wear garments production.



STANDARD SPECIFICATIONS
- Cylinder diameter, needles per inch number of feeds are as described above, so please order the machine according to requirments
-  AC motor with inverter control unit.
- Dial and cylinder needle detectors.
- Positive yarn feeding device.
- Tube-side creel with double tie.
- Oil mist lubricator for needles and cams with dust blower.
- Spreader size ring system.
- Speed of machine Depending upon yarn used, knitting condition, gauge etc the machine speed can be either increased or decreased. So please select the optimum speed for the machine according to machine condition.
The speed figures on this table are given only as guide.

OPTIONAL PARTS
- Additional cams when increasing cam in the cylinder and dial to fabric potential.
- Plating fabrics can be knitted provided yarn carrier.
- Knitting Lycra yarns in plating construction by using Memminger MER system.

Moel is the latest 3-position technology for advanced double knit mini-jacquard machine, Patterns are adjusted by hand with fast, simple and unlimited 3-position technique to pro-duce any patterns.
STANDARD SPECIFICATIONS

- The dial cam race has 2 needle tracks.
- Both types of needles are independently adjustable to the missing, fucking, knitting and supporting.
- The cylinder has 3 position needle selection by 39 steps selector with semi closed cam system.

PATTERN AREA

FABRIC POTENTIAL
Double jersey knitting constructions of 2 to 3 colors jacquard pattern, single & double blister interlock, Interlook pique, eightlock, punto di roma, milano rib, fuck stitch, welt stitch double pique, crepe and more.

This plush machine is newly developed to produce high quality pile fabric in mount sinker-dial on double base frame speed operation, Top effcency ansminimum maintenance tee

STANDARD SPECIFICATIONS

- In combination with cylinder, sinker-dial
- 4 track cylinder cam for versatility of ground structure
- Easy adjustment of pile-length
- AC motor with inverter control unit
- Lycra-plating is available
- MPE-positive feeding device.
- Venti-cleaner.
- Spreader size ring system.
