(주)아이스트로

(주)아이스트로

Modular Type

모델명

시리즈

Ice Cube Machine


구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

대한민국


032-814-0693

제품 상세 설명

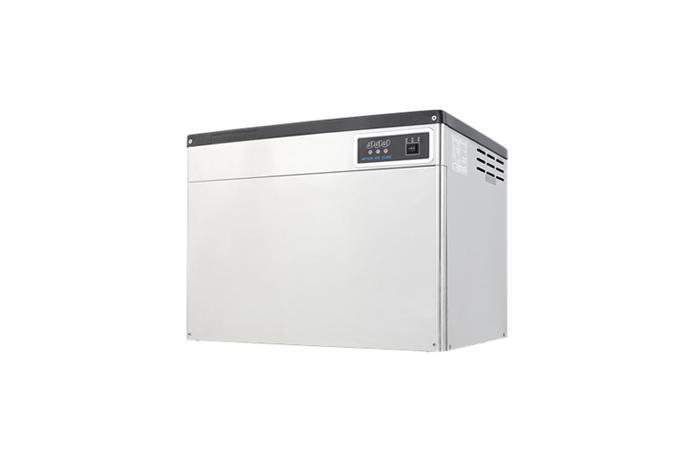

ICETRO Modular Type


Product nameICI-220AD(H)S
Production Capacity
(kg (lbs) / day)
205.3kg(452.6lbs)
Storage Capacity
(kg(lbs))
110kg(242.5lbs)
Compressor(HP / BTU)1.1HP, 6,855BTU/h
Power Consumption(W)700W
Condenser typeAir-Cooled, Water-Cooled
RefrigerantR-404A
Voltage option
(V / Hz / PH)
208~230V/60HZ/1PH, 220~240V/50HZ/1PH, 115V/60HZ/1PH
Dimension
(WxDxH / mm / inch)
568X620X554(mm), 22.4X24.4X21.8(inch)
Weight(kg (lbs))68kg(149.9lbs))



ICETRO Modular Type  1


Product nameICI-500AD(H)
Production Capacity
(kg (lbs) / day)
481Kg(1,060lbs)
Storage Capacity
(kg(lbs))
200Kg(441lbs)
Compressor(HP / BTU)2.0HP 20,000BTU/h
Power Consumption(W)1,710W
Condenser typeAir-Cooled, Water-Cooled
RefrigerantR404A
Voltage option
(V / Hz / PH)
208~230V/60HZ/1PH, 220~240V/50HZ/1PH
Dimension
(WxDxH / mm / inch)
768X632X760(mm), 30.2X24.9X29.9(inch)
Weight(kg (lbs))114kg(251.3lbs)



ICETRO Modular Type  2ICETRO Modular Type  3



Product nameSCI-700A(H)
Production Capacity
(kg (lbs) / day)
512kg(1,128.7lbs)
Storage Capacity
(kg(lbs))
150kg(331lbs)
Compressor(HP / BTU)1.5HP X 2EA
Power Consumption(W)1,300W + 1,300W
Condenser typeAir cooled, Water-Cooled
RefrigerantR-404A
Voltage option
(V / Hz / PH)
208-230/V60Hz/1PH, 220-240V/50Hz/1PH
Dimension
(WxDxH / mm / inch)
762x610x1,160(mm), 30.0x24.0x46.5(inch)
Weight(kg (lbs))168Kg (370.4lbs_



ICETRO Modular Type  4ICETRO Modular Type  5


Product nameSCI-530A(H)
Production Capacity
(kg (lbs) / day)
477.4Kg(1,052.4lbs)
Storage Capacity
(kg(lbs))
150kg(331lbs)
Compressor(HP / BTU)1.1HP+1.5HP
Power Consumption(W)1,250W+1,300W
Condenser typeAir cooled, Water-Cooled
RefrigerantR-404A
Voltage option
(V / Hz / PH)
115V60Hz/1PH, 208-230V/60Hz/1PH, 220-240V/50Hz/1PH
Dimension
(WxDxH / mm / inch)
762x610x1,160mm (30.0x24.0x45.6(inch)
Weight(kg (lbs))148kg (326.2lbs)



ICETRO Modular Type  6


Product nameSCI-300A(H)
Production Capacity
(kg (lbs) / day)
256Kg(564.4lbs)
Storage Capacity
(kg(lbs))
150kg, 331lbs
Compressor(HP / BTU)1.5HP, 18,000BTU/h
Power Consumption(W)1,300W
Condenser typeAir cooled, Water-Cooled
RefrigerantR-404A
Voltage option
(V / Hz / PH)
208-230V/60Hz/1PH, 220-240V/50Hz/1PH
Dimension
(WxDxH / mm / inch)
762x610x580(mm), 30.0x24.0x22.9(inch)
Weight(kg (lbs))84Kg (185.2bs)




ICETRO Modular Type  7

Product nameSCI-200A(H)
Production Capacity
(kg (lbs) / day)
221.4Kg(488lbs)
Storage Capacity
(kg(lbs))
150kg(331lbs)
Compressor(HP / BTU)1.1HP, 8,464BTU/h
Power Consumption(W)1,250W
Condenser typeAir cooled, Water-Cooled
RefrigerantR-404A
Voltage option
(V / Hz / PH)
115V60Hz/1PH, 208-230V/60Hz/1PH, 220-240V/50Hz/1PH
Dimension
(WxDxH / mm / inch)
762x610x580mm (30.0x24.0X22.9(inch)
Weight(kg (lbs))64kg (141.1lbs)
