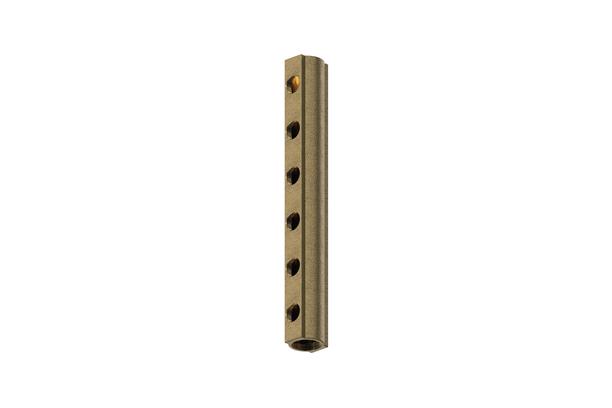

Water Collector

모델명

시리즈

Accessories

구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

제조사/판매자에게 문의 바랍니다.

제품 상세 설명

Part number Female Thread (Th1) Female Thread (Th2) Nº of Outputs L Temperature Range Material
HPBC38A34B2S 3/8 3/4 2 76 5°C to 110°C CW605N Brass
HPBC38A34B3S 3/8 3/4 3 111 5°C to 110°C CW605N Brass
HPBC38A34B4S 3/8 3/4 4 146 5°C to 110°C CW605N Brass
HPBC38A34B5S 3/8 3/4 5 181 5°C to 110°C CW605N Brass
HPBC38A34B6S 3/8 3/4 6 216 5°C to 110°C CW605N Brass
HPBC38A34B7S 3/8 3/4 7 251 5°C to 110°C CW605N Brass
HPBC38A34B8S 3/8 3/4 8 286 5°C to 110°C CW605N Brass
HPBC38A34B9S 3/8 3/4 9 321 5°C to 110°C CW605N Brass
HPBC38A34B10S 3/8 3/4 10 356 5°C to 110°C CW605N Brass
HPBC38A34B11S 3/8 3/4 11 391 5°C to 110°C CW605N Brass
HPBC38A34B12S 3/8 3/4 12 426 5°C to 110°C CW605N Brass
HPBC12A34B2S 1/2 3/4 2 95 5°C to 110°C CW605N Brass
HPBC12A34B3S 1/2 3/4 3 145 5°C to 110°C CW605N Brass
HPBC12A34B4S 1/2 3/4 4 195 5°C to 110°C CW605N Brass
HPBC12A34B5S 1/2 3/4 5 245 5°C to 110°C CW605N Brass
HPBC12A34B6S 1/2 3/4 6 295 5°C to 110°C CW605N Brass
HPBC12A34B7S 1/2 3/4 7 345 5°C to 110°C CW605N Brass
HPBC12A34B8S 1/2 3/4 8 395 5°C to 110°C CW605N Brass
HPBC12A34B9S 1/2 3/4 9 445 5°C to 110°C CW605N Brass
HPBC12A34B10S 1/2 3/4 10 495 5°C to 110°C CW605N Brass
HPBC12A34B11S 1/2 3/4 11 545 5°C to 110°C CW605N Brass
HPBC12A34B12S 1/2 3/4 12 595 5°C to 110°C CW605N Brass
HPBC38A100B2S 3/8 1” 2 80 5°C to 110°C CW605N Brass
HPBC38A100B3S 3/8 1” 3 115 5°C to 110°C CW605N Brass
HPBC38A100B4S 3/8 1” 4 150 5°C to 110°C CW605N Brass
HPBC38A100B5S 3/8 1” 5 185 5°C to 110°C CW605N Brass
HPBC38A100B6S 3/8 1” 6 220 5°C to 110°C CW605N Brass
HPBC38A100B7S 3/8 1” 7 255 5°C to 110°C CW605N Brass
HPBC38A100B8S 3/8 1” 8 290 5°C to 110°C CW605N Brass
HPBC38A100B9S 3/8 1” 9 325 5°C to 110°C CW605N Brass
HPBC38A100B10S 3/8 1” 10 360 5°C to 110°C CW605N Brass
HPBC38A100B11S 3/8 1” 11 395 5°C to 110°C CW605N Brass
HPBC38A100B12S 3/8 1” 12 430 5°C to 110°C CW605N Brass
HPBC12A100B2S 1/2 1” 2 99 5°C to 110°C CW605N Brass
HPBC12A100B3S 1/2 1” 3 149 5°C to 110°C CW605N Brass
HPBC12A100B4S 1/2 1” 4 199 5°C to 110°C CW605N Brass
HPBC12A100B5S 1/2 1” 5 249 5°C to 110°C CW605N Brass
HPBC12A100B6S 1/2 1” 6 299 5°C to 110°C CW605N Brass
HPBC12A100B7S 1/2 1” 7 349 5°C to 110°C CW605N Brass
HPBC12A100B8S 1/2 1” 8 399 5°C to 110°C CW605N Brass
HPBC12A100B9S 1/2 1” 9 449 5°C to 110°C CW605N Brass
HPBC12A100B10S 1/2 1” 10 499 5°C to 110°C CW605N Brass
HPBC12A100B11S 1/2 1” 11 549 5°C to 110°C CW605N Brass
HPBC12A100B12S 1/2 1” 12 599 5°C to 110°C CW605N Brass
HPBC12A114B2S 1/2 1” 1/4 2 99 5°C to 110°C CW605N Brass
HPBC12A114B3S 1/2 1” 1/4 3 149 5°C to 110°C CW605N Brass
HPBC12A114B4S 1/2 1” 1/4 4 199 5°C to 110°C CW605N Brass
HPBC12A114B5S 1/2 1” 1/4 5 249 5°C to 110°C CW605N Brass
HPBC12A114B6S 1/2 1” 1/4 6 299 5°C to 110°C CW605N Brass
HPBC12A114B7S 1/2 1” 1/4 7 349 5°C to 110°C CW605N Brass
HPBC12A114B8S 1/2 1” 1/4 8 399 5°C to 110°C CW605N Brass
HPBC12A114B9S 1/2 1” 1/4 9 449 5°C to 110°C CW605N Brass
HPBC12A114B10S 1/2 1” 1/4 10 499 5°C to 110°C CW605N Brass
HPBC12A114B11S 1/2 1” 1/4 11 549 5°C to 110°C CW605N Brass
HPBC12A114B12S 1/2 1” 1/4 12 599 5°C to 110°C CW605N Brass
HPBC34A114B2S 3/4 1” 1/4 2 124 5°C to 110°C CW605N Brass
HPBC34A114B3S 3/4 1” 1/4 3 194 5°C to 110°C CW605N Brass
HPBC34A114B4S 3/4 1” 1/4 4 264 5°C to 110°C CW605N Brass
HPBC34A114B5S 3/4 1” 1/4 5 334 5°C to 110°C CW605N Brass
HPBC34A114B6S 3/4 1” 1/4 6 404 5°C to 110°C CW605N Brass
HPBC100A112B2S 1” 1” 1/2 2 169 5°C to 110°C CW605N Brass
HPBC100A112B3S 1” 1” 1/2 3 269 5°C to 110°C CW605N Brass
HPBC100A112B4S 1” 1” 1/2 4 369 5°C to 110°C CW605N Brass
HPBC100A112B5S 1” 1” 1/2 5 469 5°C to 110°C CW605N Brass
HPBC100A112B6S 1” 1” 1/2 6 569 5°C to 110°C CW605N Brass
HPBC100A112B7S 1” 1” 1/2 7 669 5°C to 110°C CW605N Brass
HPBC100A112B8S 1” 1” 1/2 8 769 5°C to 110°C CW605N Brass
HPBC100A112B9S 1” 1” 1/2 9 869 5°C to 110°C CW605N Brass
HPBC100A112B10S 1” 1” 1/2 10 969 5°C to 110°C CW605N Brass
HPBC100A112B11S 1” 1” 1/2 11 1069 5°C to 110°C CW605N Brass
HPBC100A112B12S 1” 1” 1/2 12 1169 5°C to 110°C CW605N Brass
HPBC100A200B2S 1” 2” 2 174 5°C to 110°C CW605N Brass
HPBC100A200B3S 1” 2” 3 274 5°C to 110°C CW605N Brass
HPBC100A200B4S 1” 2” 4 374 5°C to 110°C CW605N Brass
HPBC100A200B5S 1” 2” 5 474 5°C to 110°C CW605N Brass
HPBC100A200B6S 1” 2” 6 574 5°C to 110°C CW605N Brass

자료 다운로드

Catalog-Hps Asia Limited-Water Collector
