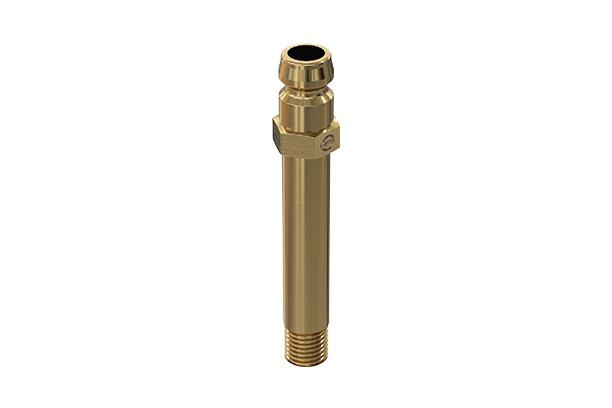

Plug Extender (Water Couplings)

모델명

시리즈

Accessories

구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

제조사/판매자에게 문의 바랍니다.

제품 상세 설명

Part number Ø Plug (mm) L Male Thread Temperature Range Material
PGH819G1860 9 60 1/8 -20°C +100°C ( -4°F +212°F ) Nitrile Brass
PGH819G18100 9 100 1/8 -20°C +100°C ( -4°F +212°F ) Nitrile Brass
PGH819G18150 9 150 1/8 -20°C +100°C ( -4°F +212°F ) Nitrile Brass
PGH819G1460 9 60 1/4 -20°C +100°C ( -4°F +212°F ) Nitrile Brass
PGH819G14100 9 100 1/4 -20°C +100°C ( -4°F +212°F ) Nitrile Brass
PGH819G14150 9 150 1/4 -20°C +100°C ( -4°F +212°F ) Nitrile Brass
PGH819G3860 9 60 3/8 -20°C +100°C ( -4°F +212°F ) Nitrile Brass
PGH819G38100 9 100 3/8 -20°C +100°C ( -4°F +212°F ) Nitrile Brass
PGH819G38150 9 150 3/8 -20°C +100°C ( -4°F +212°F ) Nitrile Brass
PGH813G1860 13.5 60 1/8 -20°C +100°C ( -4°F +212°F ) Nitrile Brass
PGH813G18100 13.5 100 1/8 -20°C +100°C ( -4°F +212°F ) Nitrile Brass
PGH813G18150 13.5 150 1/8 -20°C +100°C ( -4°F +212°F ) Nitrile Brass
PGH813G1460 13.5 60 1/4 -20°C +100°C ( -4°F +212°F ) Nitrile Brass
PGH813G14100 13.5 100 1/4 -20°C +100°C ( -4°F +212°F ) Nitrile Brass
PGH813G14150 13.5 150 1/4 -20°C +100°C ( -4°F +212°F ) Nitrile Brass
PGH813G3860 13.5 60 3/8 -20°C +100°C ( -4°F +212°F ) Nitrile Brass
PGH813G38100 13.5 100 3/8 -20°C +100°C ( -4°F +212°F ) Nitrile Brass
PGH813G38150 13.5 150 3/8 -20°C +100°C ( -4°F +212°F ) Nitrile Brass
PGH813G1260 13.5 60 1/2 -20°C +100°C ( -4°F +212°F ) Nitrile Brass
PGH813G12100 13.5 100 1/2 -20°C +100°C ( -4°F +212°F ) Nitrile Brass
PGH813G12150 13.5 150 1/2 -20°C +100°C ( -4°F +212°F ) Nitrile Brass
PGH8119G12250 19 250 1/2 -20°C +100°C ( -4°F +212°F ) Nitrile Brass
PGH8119G12500 19 500 1/2 -20°C +100°C ( -4°F +212°F ) Nitrile Brass
PGH8119G12800 19 800 1/2 -20°C +100°C ( -4°F +212°F ) Nitrile Brass
PGH8119G34250 19 250 3/4 -20°C +100°C ( -4°F +212°F ) Nitrile Brass
PGH8119G34500 19 500 3/4 -20°C +100°C ( -4°F +212°F ) Nitrile Brass
PGH8119G34800 19 800 3/4 -20°C +100°C ( -4°F +212°F ) Nitrile Brass

자료 다운로드

Catalog-Hps Asia Limited-Plug Extender (Water Couplings)
