DTS10 Metal-Polymer Hydrodynamic Composite Bearings

모델명

시리즈

메탈폴리머 베어링


구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

제조사/판매자에게 문의 바랍니다.


010-3370-7255

제품 상세 설명





  • The first polymer-lined precision bearing for lubricated conditions offering low friction and high wear resistance that is designed to be machined on-site for tight tolerances
  • Excellent wear resistance and low friction in lubricated hydraulic applications
  • Excellent chemical resistance, fatigue strength, cavitation and flow erosion resistance, and good behavior in dry start-up conditions
  • A minimum overlay thickness of 0.1 mm permits, under carefully controlled conditions, machining of the assembled bore for improved dimensional tolerance and reduced geometric defects, while retaining a thin layer of PTFE sliding surface
  • Compatible with most standard machining processes including turning, broaching, reaming, and milling

AVAILABILITY

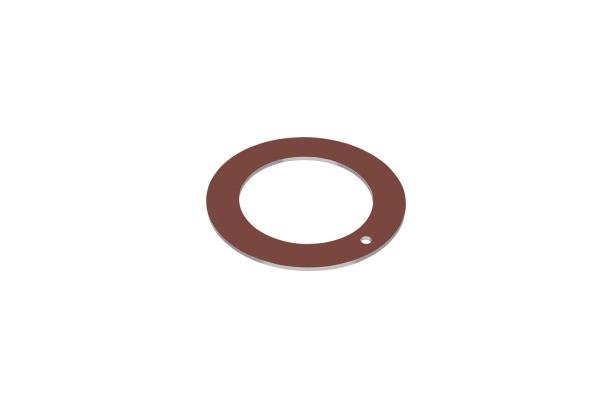

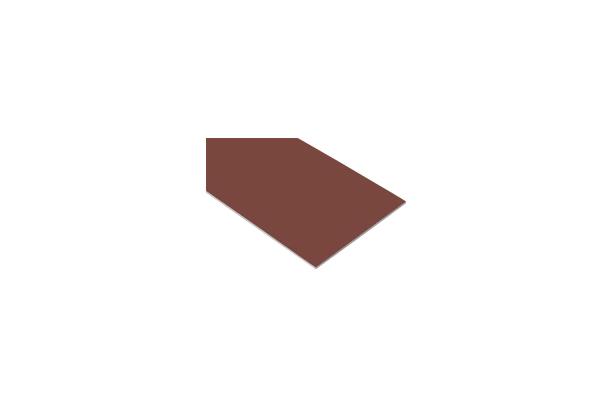

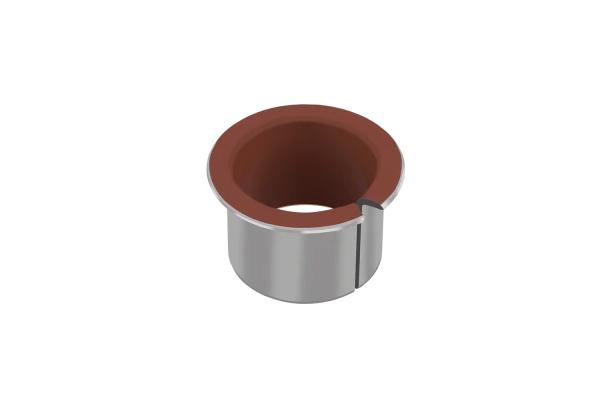

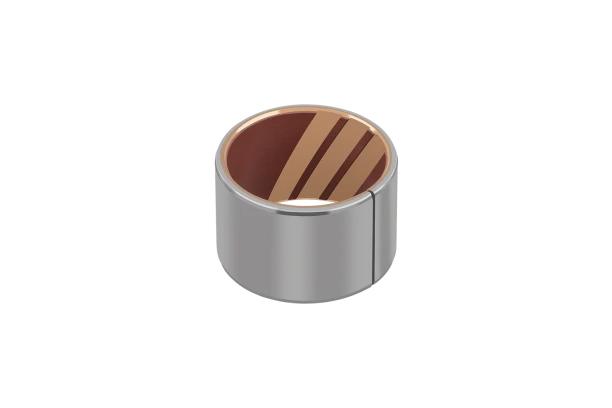

Bearing forms made to order: cylindrical bushes, thrust washers, sliding plates, half-bearings, special shapes obtained by stamping, bearings with locating notches, lubricant holes and machined grooves, customized bearing designs



  DTS10
Dry Operation Fair
Lubricated Operation ★ Very Good
Greased Operation Fair
Machinable Applicable
RoHS Compliant Compliant
Standard Sizes Not Available
Application Excellence

자료 다운로드

Catalog-GGB-DTS10 Metal-Polymer Hydrodynamic Composite Bearings
