Analyser for continuous on-line monitoring of Hydrogen Sulphide

Description :

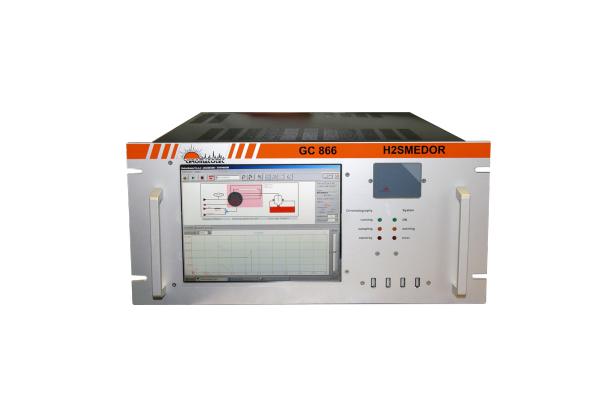

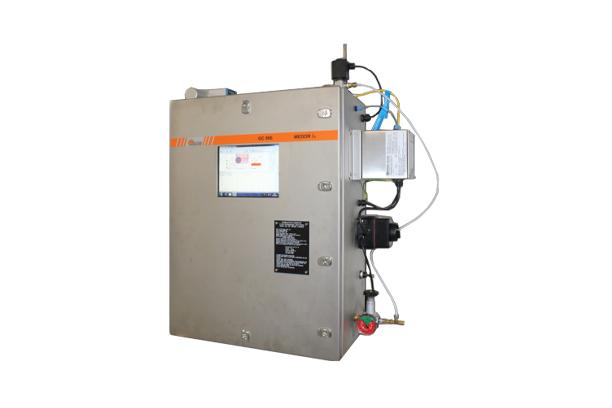

H2S Medor is an online Gas Chromatograph dedicated to the analysis of H2S present in different matrices.
Two versions of the instrument exist :

• H2S Medor ppm (measuring at ppm levels)
• H2S Medor ppb (measuring at ppb levels)

Principle :

• Internal pressure & temperature monitoring
• Sample loop injection is made by automatic valve
• H2S Medor uses a sulphur specific electrochemical cell for the detection of H2S

Features :

• Online, continuous sampling
• No interference from other compounds
• Low maintenance instrument – detector life may be up to 10 years
• Automatic Validation of results by Internal Permeation Tube
• Modifiable threshold alarms – High / Low alarm for deodorising processes

VISTACHROM ® software
Chromatotec developed software system enables :

• Remote monitoring & injection control
• Full traceability with on board archiving of results and QC Set up and control of threshold alarms
• Export of data MODBUS / MGS1 / 4-20mA / 0-10V
