Automated online analysis & monitoring of Sulphur Compounds: H2S / COS / CS2 / SO2 / RSH

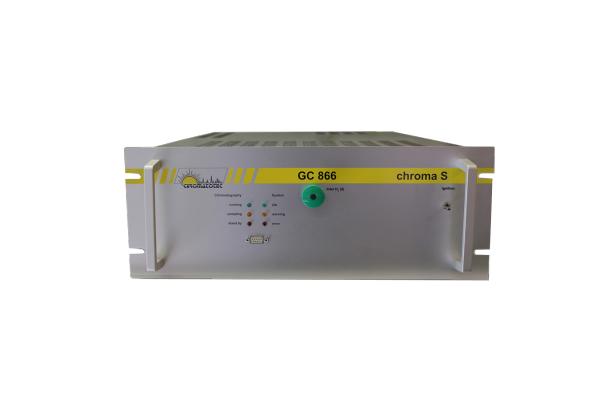

Chroma S is a fully automatic isothermal gas Chromatograph for the analysis & monitoring of sulphur compounds.

Principle :

• Continuous, uninterrupted sampling
• Sample is injected into column for separation
• Controlled oven selects optimum temperature based on application
• detection achieved by a sulphur specific photometric double flame detector

Features :

• The double flame ensures no quenching occurs
• Automatic linearization of compounds
• Identification of compounds is based on their retention time (Elution from the column)
• Automatic data validation as standard with the internal permeation tube

VISTACHROM ® software :
Chromatotec developed software system allows :

• Remote monitoring
• Full traceability through archiving of results and QC
• Set up and control of threshold alarms
• Export of data MODBUS / MGS1 / 4-20mA /0-10V
