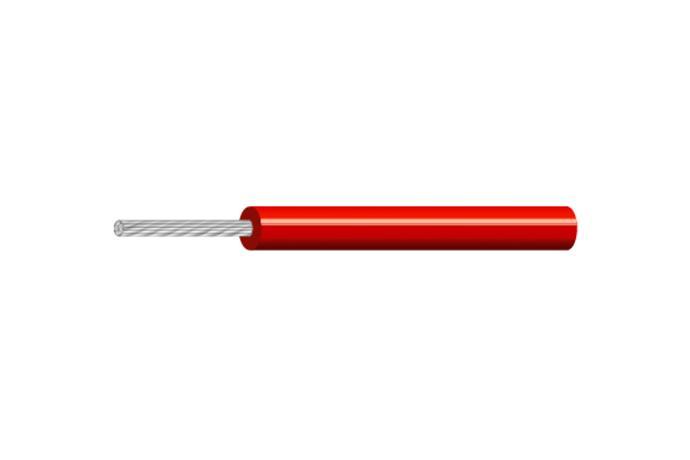

1 - Conductor : Annealed Copper Wire (Tin plating, Nickel plating, Silver plating)
2 - Insulation : Fluoro Resin (PFA)

1. Description


PFA is the wire which is insulated by nonflammable fluoro resin on copper wire annealed by special material. PFA has been using for internal wiring of electric equpment


2. Feature

 ▶ Physical-chemical

  1) Allowable Temperature : Up to 250℃
  2) Superiority of chemical resistance under chemical circomstance
  3) Superiority of workability under humidity circomstance, severe condition
  4) Superiority of mechanical strength
  5) Superiority of fire retardance (UL VW-1 Grade)

 ▶ Electrical
  1) Rated Voltage : 300V
  2) Test Voltage : 2,000V/min (Depends on UL style)

3. Approval Standard

 ▶ UL and CSA approved (File No. E120271)
 ▶ AWM 1726
