This product is manufactured by
YONWOO PNEUMATIC

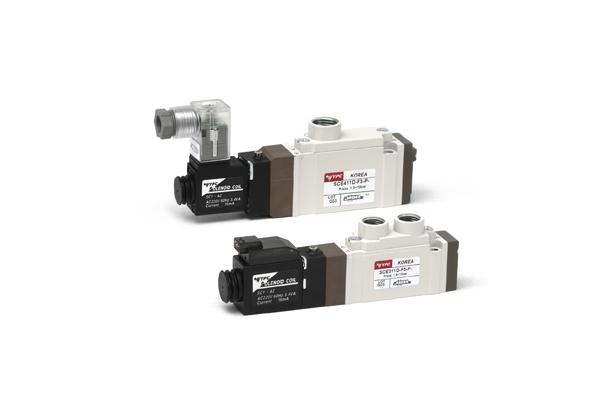

Compact solenoid valve (SCE 5PORT Series)
Model Name
SCE311D
Data
Catalog-Yonwoo Pneumatic-Compact solenoid valve-SEC300 Series
Manufacturer information
YONWOO PNEUMATIC
Solenoid, Mechanical, Cartridge valve and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
YONWOO PNEUMATIC
Product Type
Machine
Brand
-
SKU
129463
Product Name
Compact solenoid valve (SCE 5PORT Series)
Model Name
SCE311D, SCE320D, SCE333D, SCE343D, SCE353D, SCB31-D-00, SCE311B, SCE320B, SCE333B, SCE343B, SCE353B, SCB31-B-00, SCE411D, SCE420D, SCE433D, SCE443D, SCE453D, SCB41-D-00, SCE411B, SCE420B, SCE433B, SCE443B, SCE453B, SCB41-B-00, SCE511D, SCE520D, SCE533D, SCE543D, SCE553D, SCB51-D-00, SCE511B, SCE520B, SCE533B, SCE543B, SCE553B, SCB51-B-00
Size
-
Weight
-
Product Details
Compact solenoid valve
SCE 5PORT
Increased performance and durability
Small high flow
CE/RoHS Correspondence
Coil nonpolar application
Oil-free type
SCE300 Series 5/2, 5/3Way 15mm, 1/8, Compact high oil contents Solenoid valve, Various coil specifications and rated voltage
| Model Name | Function | Eff. Sectional Area | Port Size | Voltage |
|---|---|---|---|---|
| SCE311D | 5/2 Single | 9.0㎟ | Manifold 1/8 | AC110V, AC220V, DC12V, DC24V |
| SCE320D | 5/2 Double | 9.0㎟ | Manifold 1/8 | AC110V, AC220V, DC12V, DC24V |
| SCE333D | 5/3 Close Center | 7.5㎟ | Manifold 1/8 | AC110V, AC220V, DC12V, DC24V |
| SCE343D | 5/3 Exhaust Center | 7.5㎟ | Manifold 1/8 | AC110V, AC220V, DC12V, DC24V |
| SCE353D | 5/3 Pressure Center | 7.5㎟ | Manifold 1/8 | AC110V, AC220V, DC12V, DC24V |
| SCB31-D-00 | ㅡ | ㅡ | ㅡ | ㅡ |
| SCE311B | 5/2 Single | 9.0㎟ | Sub-Base 1/8 | AC110V, AC220V, DC12V, DC24V |
| SCE320B | 5/2 Double | 9.0㎟ | Sub-Base 1/8 | AC110V, AC220V, DC12V, DC24V |
| SCE333B | 5/3 Close Center | 7.5㎟ | Sub-Base 1/8 | AC110V, AC220V, DC12V, DC24V |
| SCE343B | 5/3 Exhaust Center | 7.5㎟ | Sub-Base 1/8 | AC110V, AC220V, DC12V, DC24V |
| SCE353B | 5/3 Pressure Center | 7.5㎟ | Sub-Base 1/8 | AC110V, AC220V, DC12V, DC24V |
| SCB31-B-00 | ㅡ | ㅡ | ㅡ | ㅡ |
SCE300 Series Order Form
SCE400 Series 5/2, 5/3 18mm, 1/4, Compact high oil contents Solenoid valve, Various coil specifications and rated voltage
| Model Name | Function | Eff. Sectional Area | Port Size | Voltage |
|---|---|---|---|---|
| SCE411D | 5/2 Single | 16㎟ | Manifold 1/4 | AC110V, AC220V, DC12V, DC24V |
| SCE420D | 5/2 Double | 16㎟ | Manifold 1/4 | AC110V, AC220V, DC12V, DC24V |
| SCE433D | 5/3 Close Center | 12㎟ | Manifold 1/4 | AC110V, AC220V, DC12V, DC24V |
| SCE443D | 5/3 Exhaust Center | 12㎟ | Manifold 1/4 | AC110V, AC220V, DC12V, DC24V |
| SCE453D | 5/3 Pressure Center | 12㎟ | Manifold 1/4 | AC110V, AC220V, DC12V, DC24V |
| SCB41-D-00 | ㅡ | ㅡ | ㅡ | ㅡ |
| SCE411B | 5/2 Single | 16㎟ | Sub-Base 1/4 | AC110V, AC220V, DC12V, DC24V |
| SCE420B | 5/2 Double | 16㎟ | Sub-Base 1/4 | AC110V, AC220V, DC12V, DC24V |
| SCE433B | 5/3 Close Center | 12㎟ | Sub-Base 1/4 | AC110V, AC220V, DC12V, DC24V |
| SCE443B | 5/3 Exhaust Center | 12㎟ | Sub-Base 1/4 | AC110V, AC220V, DC12V, DC24V |
| SCE453B | 5/3 Pressure Center | 12㎟ | Sub-Base 1/4 | AC110V, AC220V, DC12V, DC24V |
| SCB41-B-00 | ㅡ | ㅡ | ㅡ | ㅡ |
SCE400 Series Order Form
SCE500 Series 5/2, 5/3 26mm, 3/8, Compact high oil contents Solenoid valve,Various coil specifications and rated voltage
| Model Name | Function | Eff. Sectional Area | Port Size | Voltage |
|---|---|---|---|---|
| SCE511D | 5/2 Single | 40㎟ | Manifold 3/8 | AC110V, AC220V, DC12V, DC24V |
| SCE520D | 5/2 Double | 40㎟ | Manifold 3/8 | AC110V, AC220V, DC12V, DC24V |
| SCE533D | 5/3 Close Center | 30㎟ | Manifold 3/8 | AC110V, AC220V, DC12V, DC24V |
| SCE543D | 5/3 Exhaust Center | 30㎟ | Manifold 3/8 | AC110V, AC220V, DC12V, DC24V |
| SCE553D | 5/3 Pressure Center | 30㎟ | Manifold 3/8 | AC110V, AC220V, DC12V, DC24V |
| SCB51-D-00 | ㅡ | ㅡ | ㅡ | ㅡ |
| SCE511B | 5/2 Single | 40㎟ | Sub-Base 3/8 | AC110V, AC220V, DC12V, DC24V |
| SCE520B | 5/2 Double | 40㎟ | Sub-Base 3/8 | AC110V, AC220V, DC12V, DC24V |
| SCE533B | 5/3 Close Center | 30㎟ | Sub-Base 3/8 | AC110V, AC220V, DC12V, DC24V |
| SCE543B | 5/3 Exhaust Center | 30㎟ | Sub-Base 3/8 | AC110V, AC220V, DC12V, DC24V |
| SCE553B | 5/3 Pressure Center | 30㎟ | Sub-Base 3/8 | AC110V, AC220V, DC12V, DC24V |
| SCB51-B-00 | ㅡ | ㅡ | ㅡ | ㅡ |
SCE500 Series Order Form
