This product is manufactured by
YONWOO PNEUMATIC

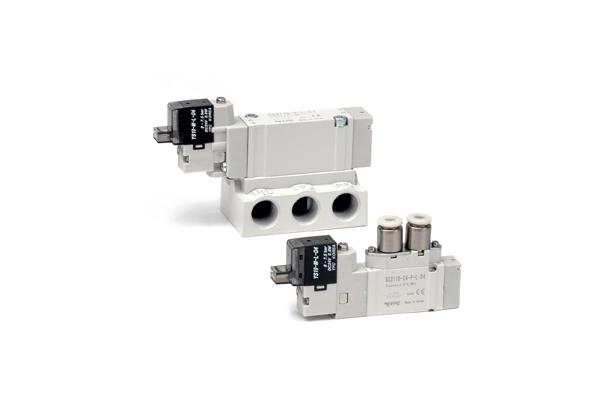

Compact solenoid valve (SC5PORT Series)
Model Name
SC211D
Data
Catalog-Yonwoo Pneumatic-Compact solenoid valve-SC200 Series
Manufacturer information
YONWOO PNEUMATIC
Solenoid, Mechanical, Cartridge valve and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
YONWOO PNEUMATIC
Product Type
Machine
Brand
-
SKU
129457
Product Name
Compact solenoid valve (SC5PORT Series)
Model Name
SC211D, SC220D, SC233D, SC243D, SC253D, SCB21-D-00, SC211B, SC220B, SC233B, SC243B, SC253B, SCB21-B-00, SC311D, SC320D, SC333D, SC343D, SC353D, SCB31-D-00, SC311B, SC320B, SC333B, SC343B, SC353B, SCB31-B-00, SC411D, SC420D, SC433D, SC443D, SC453D, SCB41-D-00, SC411B, SC420B, SC433B, SC443B, SC453B, SCB41-B-00
Size
-
Weight
-
Product Details
Compact solenoid valve
SC 5PORT
Increased performance and durability
Small high flow
CE/RoHS Correspondence
Coil nonpolar application
Low power consumption 0.65W
Oil-free type
SC200 Series 5/2, 5/3 10mm, M5, Compact high oil contents, Low power consumption 0.65W , Pilot type Solenoid valve
| Model Name | Function | Eff. Sectional Area | Port Size | Voltage |
|---|---|---|---|---|
| SC211D | 5/2 Single | 2.3㎟ | Manifold M5 | DC12V, DC24V |
| SC220D | 5/2 Double | 2.3㎟ | Manifold M5 | DC12V, DC24V |
| SC233D | 5/3 Close Center | 1.8㎟ | Manifold M5 | DC12V, DC24V |
| SC243D | 5/3 Exhaust Center | 1.8㎟ | Manifold M5 | DC12V, DC24V |
| SC253D | 5/3 Pressure Center | 1.8㎟ | Manifold M5 | DC12V, DC24V |
| SCB21-D-00 | ㅡ | ㅡ | ㅡ | ㅡ |
| SC211B | 5/2 Single | 2.3㎟ | Sub-Base M5 | DC12V, DC24V |
| SC220B | 5/2 Double | 2.3㎟ | Sub-Base M5 | DC12V, DC24V |
| SC233B | 5/3 Close Center | 1.8㎟ | Sub-Base M5 | DC12V, DC24V |
| SC243B | 5/3 Exhaust Center | 1.8㎟ | Sub-Base M5 | DC12V, DC24V |
| SC253B | 5/3 Pressure Center | 1.8㎟ | Sub-Base M5 | DC12V, DC24V |
| SCB21-B-00 | ㅡ | ㅡ | ㅡ | ㅡ |
SC200 Series Order Form
SC300 Series 5/2, 5/3 10mm, M5, Compact high oil contents, Low power consumption 0.65W , Pilot type Solenoid valve
| Model Name | Function | Eff. Sectional Area | Port Size | Voltage |
|---|---|---|---|---|
| SC311D | 5/2 Single | 9.0㎟ | Manifold M5 | DC12V, DC24V |
| SC320D | 5/2 Double | 9.0㎟ | Manifold M5 | DC12V, DC24V |
| SC333D | 5/3 Close Center | 7.5㎟ | Manifold M5 | DC12V, DC24V |
| SC343D | 5/3 Exhaust Center | 7.5㎟ | Manifold M5 | DC12V, DC24V |
| SC353D | 5/3 Pressure Center | 7.5㎟ | Manifold M5 | DC12V, DC24V |
| SCB31-D-00 | ㅡ | ㅡ | ㅡ | ㅡ |
| SC311B | 5/2 Single | 9.0㎟ | Sub-Base M5 | DC12V, DC24V |
| SC320B | 5/2 Double | 9.0㎟ | Sub-Base M5 | DC12V, DC24V |
| SC333B | 5/3 Close Center | 7.5㎟ | Sub-Base M5 | DC12V, DC24V |
| SC343B | 5/3 Exhaust Center | 7.5㎟ | Sub-Base M5 | DC12V, DC24V |
| SC353B | 5/3 Pressure Center | 7.5㎟ | Sub-Base M5 | DC12V, DC24V |
| SCB31-B-00 | ㅡ | ㅡ | ㅡ | ㅡ |
SC300 Series Order Form
SC400 Series 5/2, 5/3 10mm, M5, Compact high oil contents, Low power consumption 0.65W , Pilot type Solenoid valve
| Model Name | Function | Eff. Sectional Area | Port Size | Voltage |
|---|---|---|---|---|
| SC411D | 5/2 Single | 16.0㎟ | Manifold 1/4 | DC12V, DC24V |
| SC420D | 5/2 Double | 16.0㎟ | Manifold 1/4 | DC12V, DC24V |
| SC433D | 5/3 Close Center | 12.0㎟ | Manifold 1/4 | DC12V, DC24V |
| SC443D | 5/3 Exhaust Center | 12.0㎟ | Manifold 1/4 | DC12V, DC24V |
| SC453D | 5/3 Pressure Center | 12.0㎟ | Manifold 1/4 | DC12V, DC24V |
| SCB41-D-00 | ㅡ | ㅡ | ㅡ | ㅡ |
| SC411B | 5/2 Single | 16㎟ | Sub-Base 1/4 | DC12V, DC24V |
| SC420B | 5/2 Double | 16㎟ | Sub-Base 1/4 | DC12V, DC24V |
| SC433B | 5/3 Close Center | 12㎟ | Sub-Base 1/4 | DC12V, DC24V |
| SC443B | 5/3 Exhaust Center | 12㎟ | Sub-Base 1/4 | DC12V, DC24V |
| SC453B | 5/3 Pressure Center | 12㎟ | Sub-Base 1/4 | DC12V, DC24V |
| SCB41-B-00 | ㅡ | ㅡ | ㅡ | ㅡ |
SC400 Series Order Form
