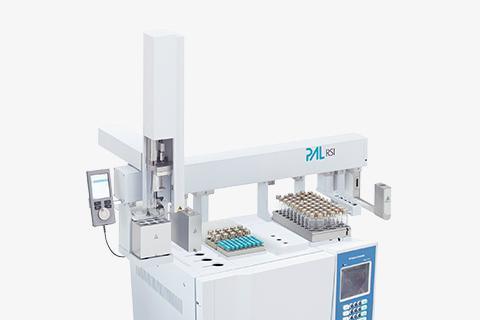

YL PAL System

YL PAL System은 다양한 전처리 및 시료주입방법을 한 시스템에 구성하여 복잡한 분석의 모든 과정을 자동화할 수 있는 프리미엄 시료 주입 시스템입니다.
또한, 많은 양의 시료를 처리할 수 있어 (2ml vial 648개) 생산성을 향상 시켜드립니다.
영린기기의 YL6500 GC 뿐만 아니라 다양한 타사 GC에도 호환이 가능합니다.

“YL PAL System”은 3가지 모델이 있습니다.

• LSI(liquid sample injection)많은 시료를 자동으로 주입시켜줄 수 있는 대용량 Autosampler입니다.
Standard x-axis Length(85cm)는 2mL vial을 648개까지 분석이 가능하며, Extended x-axis length(120cm)는 2mL vial을 972개 까지
분석을 할 수 있습니다.

• RSI(Robotic Sample Injection)/RTC(Robotic Tool Change) 모델은 기본적으로 liquid Sample Injection 기능을 포함하고 있으며, 일반적인
Liquid Autosample에서 injection하는 부분의 Tools를 교체하면 Headspace Sample 기능, SPME Auto Injection을 할 수 있습니다.

• RSI는 사람이 Manual로 Headspace sample Tool과 SPME Sample Tool을 교체하여야 하지만, RTC Model은 자동으로 YL PAL에서 Tools를 교체하여
실험을 진행합니다.

특징

• “PAL System”의 정밀한 Bottom sensing기능은 약 5μL의 시료로 3번 주입이 가능할 정도로
바이알에 잔존하는 미량의 시료로 최대한의 분석이 가능
• 시료의 추출방식에 따라 사용되는 tools이 자동으로 전환
• Peltier stack 개패여부를 감지하며 내부온도를 모니터링하여 시료를 안전하게 보관할 수 있음
• 바이알이 지정한 위치에 없을 경우 스스로 인식하여 분석이 멈춤
• 시료주입시간 단 0.1초



Software

YL-Clarity
