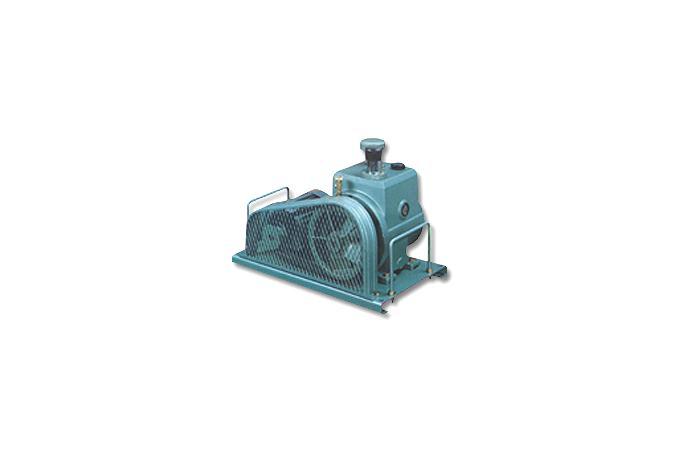

Product Name 2 Stage Rotary Pump (Belt)
Model LOVP-Series
Series Vacuum Pump
Catalog
Product Description


- LOVP Series Pump

Rotating wing continues until the moment of getting through an inlet and passes through an inlet, Inlet gas gets stuck in between wings.
It starts to compress after passing through a valve, and when it is fully compressed up to about 850Torr, the compressed gases is emitted out through a valve by an open exhaust valve


Product Features
- Accurate sealed design and a residual air design guarantee outstanding degree of a vacuum.
- Structure is simple, and compatibility is good.
- Great durability
- Small vibration, noise, and size, compared to the same engine displacement of another company.
- Easy disassembling and assembling (Specialized technology is not necessary.)
- Accurate A/S by a continuous delivery and product management

LOVP Series Technical DATA

MODELLOVP-018LOVP-030LOVP-060
DIsplacement Speed
( ℓ/min)
60Hz180300600
Ultimate Pressure
(Torr)
With gas ballast1.0×10-21.0×10-21.0×10-2
Without gas ballast5.0×10-45.0×10-45.0×10-4
Inlet port(mm)φ32φ32φ46
Outlet portPF 1"PF 1"PF 1½"
power(kW)0.40.750.75
rotational speed(R.P.M)600600600
Oil capacity(ℓ)1.82.24
Weight(including motor)32(50)35(60)51(80)


Outside Dimension

MODEL
A
B
C
D
E
F
G
LOVP-018
488
285
342
450
200
Ø171
Ø32
LOVP-030
545
310
365
515
274
Ø171
Ø32
LOVP-060
610
350
424
580
310
Ø210
Ø46
