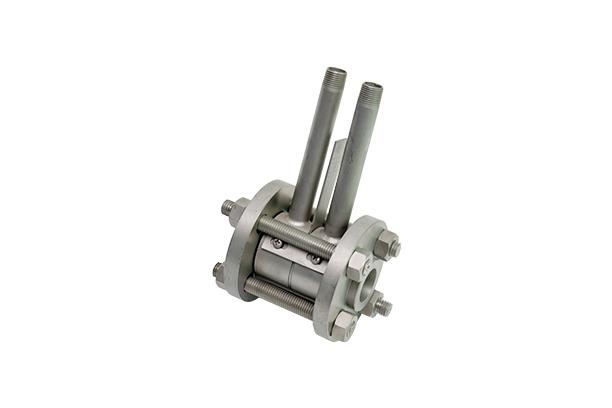

product Image
Orifice Plate With Ring
Model Name
F200
Series
Differential•Restrictio Type
Data
Datasheet-WISE-Differential•Restrictio Type-Orifice Plate With Ring-F200
Manufacturer information
provider logo
WISE CONTROL

Manufacturer of Mamometer temperature sensor, Flowmeter, Level gauge, Transmeter

Problem with product info?
Update request
Manufacturer
WISE CONTROL
Product Type
Machine
Brand
-
SKU
141832
Product Name
Orifice Plate With Ring
Model Name
F200
Size
-
Weight
-
Product Details

Description

Orifice ring assemblies are used for flow measurement of smaller or medium sized pipes at lower pressure. Each assembly consists of one orifice plate and two orifice rings. Differential pressure is taken out in a corner tap system. Orifice block, which are of a unit-construction type and provide higher pressure ratings than the orifice ring assemblies, also are available.



Specification

Orifice bore type Concentric square edged orifice
Quadrant edged orifice
Flow calculation standards ISO 5167-1 and 2 2003
AGA-3
ASME MFC-3M and 14M
JIS Z 8762
BS 1042
Flange ratings JIS 5, 10, 16, and 20K
ANSI (or JPI) 150 and 300Lb
(Note: ANSI and JPI ring dimensions are identical)
Pressure taps Corner taps
Plate thickness 3, 6, 9, 12 mm and Over
Pressure tab nipples Pipe size : 15 mm (½ inch), Sch 40 and 80
Length : 75 and 150 mm
Tap connections : ½ PT and ½ NPT male
socket welding and butt welding flange connection
Drain and vent hole Per ASME recommendations
Not drilled for orifice bores smaller than 25.4 mm
Markings Upstream side of tab handle stamped "Upstream" and with bore type and size, line size, tag number and flange rating.
Special markings Special marking may be furnished to meet special requirements
Materials Ring and pressure tap nipple : 304SS and 316SS and Other
Plate : 304SS, 316L SS, Monel and other
Gaskets Material : Non-Asbestos and Teflon
Thickness : 1.5, 2.0 and 3.0 mm

© WISE Control Inc. All rights reserved. ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
