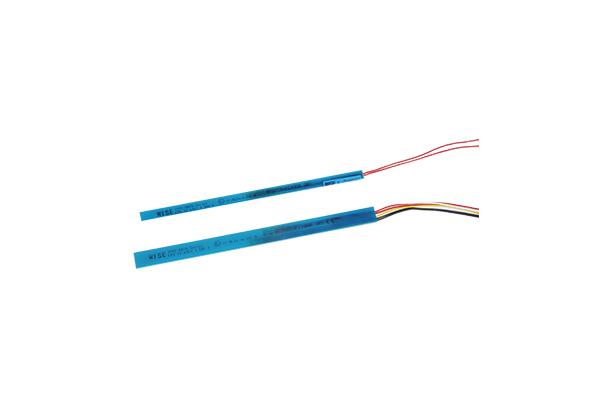

Intrinsic Safety Type Stator Winding RTD
Model Name
R821
Series
TG Sensor•Heater•Transmitter
Data
Datasheet-WISE-TG Sensor•Heater•Transmitter-Intrinsic Safety Type Stator Winding RTD-R820 series
Manufacturer information
provider logo
WISE CONTROL

Manufacturer of Mamometer temperature sensor, Flowmeter, Level gauge, Transmeter

Problem with product info?
Update request
Manufacturer
WISE CONTROL
Brand
-
SKU
141793
Product Name
Intrinsic Safety Type Stator Winding RTD
Model Name
R821, R822, R823, R824, R825, R826, R827, R828
Size
-
Weight
-
Product Details

Service intended

The purpose of the stator winding RTD is to mainly detect and prevent overheating of motors. It is inserted in between a stator and a slot to measure a temperature. Stator winding RTD uses the phenomenon of changing electric resistance to measure a temperature. Since it has high stability and sensitivity, it is used to measure a temperature precisely. Also, it is made of a nonmetallic material, and therefore it has a structure of protecting element. It is designed to get flexibility and endure vibration and high pressure.



Standard features

Body material High temperature epoxy glass
Temperature limit Class F : 155 ℃ (311 ℉)
Class H : 180 ℃ (356 ℉)
Lead wires 3 wire or 4 wire, copper, AWG #22 (With FEP or polyimide insulation)
Ambient temperature Tamb = -40 ~ 80 ℃ : T6
Tamb = -40 ~ 130 ℃ : T4
Tamb = -40 ~ 95 ℃ : T5
Tamb = -40 ~ 180 ℃ : T3
Working temperature -50 ~ 180 ℃
Standard Explosive atmospheres. Equipment. General requirements
■ IEC 60079-0 / EN 60079-0
Electrical apparatus for explosive gas atmospheres. Intrinsic safety "i"
■ IEC 60079-11 / EN 60079-11
Certificates KCS Ex ia IIC T6...T3
ATEX II 1G Ex ia IIC T6...T3 Ga
IECEx Ex ia IIC T6...T3 Ga
