Technology & Features

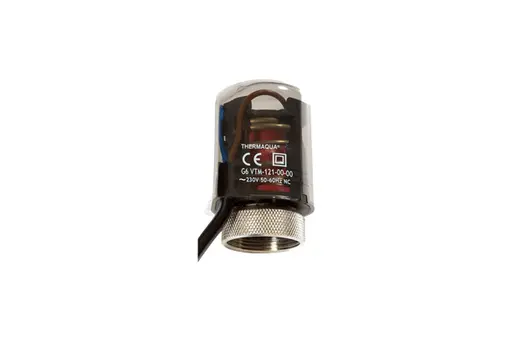

The THERMAQUA® Actuators are unique and reliable with many original & advantageous features:

• Energy saving
  Low power consumption (< 1w)
• Wide variety
  Normally Closed (NC) & Normally
  Opened (NO) versions available
• Originality
  Includes a special Vernet® thermostatic element
• Easy to assemble
  With the ‘First-Open’ function
• Silent operation
  Feature of thermo-electric actuators
• Operating position
  Visual indicator confirms position
• Long service life
  Manufactured precision and quality control
• Tailored design
  Valve adjustment to customer specifications
• Variable voltage
  230/240V or 24V availability
• Protection
  According to EN60529 (for both IP40 and IP44)

Applications

Quality & Certifications

• ISO 9001 : 2008
• VDE ready

Principles of operation

Designed for normally closed & normally opened control valves, THERMAQUA® actuators perform various control and regulation tasks as a two-step actuator (open/close).

The wax element is heated electrically by the applied operating voltage and silently opens the valve.

Without any operating voltage the wax element is no longer heated and the actuator closes (see time-stroke diagram). THERMAQUA® actuators also allow for instant functionality checks of the device.

Dimensions (in mm)
