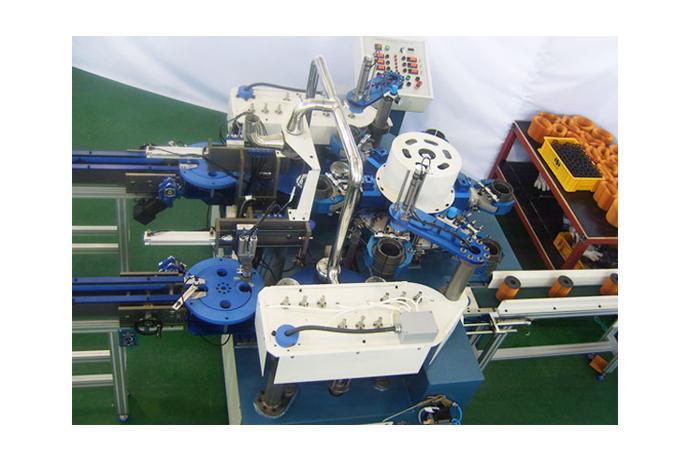

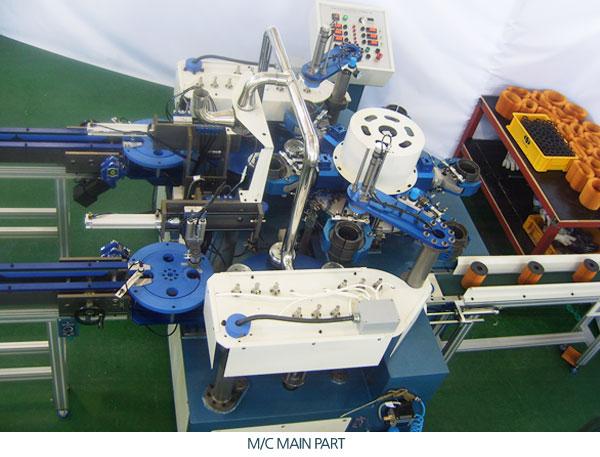

Product Name Semi-Auto Eco Filter Assemble M/C
Model UEFA-2S
Series Eco Filter Production Line
Catalog UEFA-2S.pdf
Product Description

TECHNICAL DESCRIPTION

ㆍPRODUCT CAPACITY : 6~10 pcs/ min

ㆍAVAILABLE ENDCAP SIZE : Union Tech Semi-Auto Eco Filter Assemble M/C UEFA-2S60~Union Tech Semi-Auto Eco Filter Assemble M/C UEFA-2S 1110mm

ㆍAVAILABLE ELEMENT HEIGHT : 60~250mm

ㆍINDEX TURN TABLE TYPE ASSEMBLE SYSTEM

ㆍSPECIAL HEATER(12 KW) & HOLDING JIG 1 SET

ㆍSAFETY COVER INSTALLED

ㆍMANUAL LOADING(for Nylon Cap & Paper Element & Inner Core) & AUTO UNLOADING SYSTEM

ㆍELECTRIC POWER : 380V/ 220V x 50/ 60Hz x 3P

APPLICATION

ㆍTHIS MACHINE WELD BY THE PRESSURIZATION TO WELDING PART AFTER MELTING TO WELDING PART BY SPECIAL HEATER

ㆍTHE PRECESS IS PAPER ELEMENT LOADING(1ST PROCESS), LOWER CAP LOADING(2ND PROCESS), JIG TURNING(3RD PROCESS), UPPER CAP LOADING(4TH PROCESS), FINISHED GOODS UNLOADING(5TH PROCESS), IDLE PROCESS(6TH PROCESS) WITH 3 DIFFERENT HEATING ZONE IN THE INDEX SYSTEM.

OPTION

ㆍHEATER

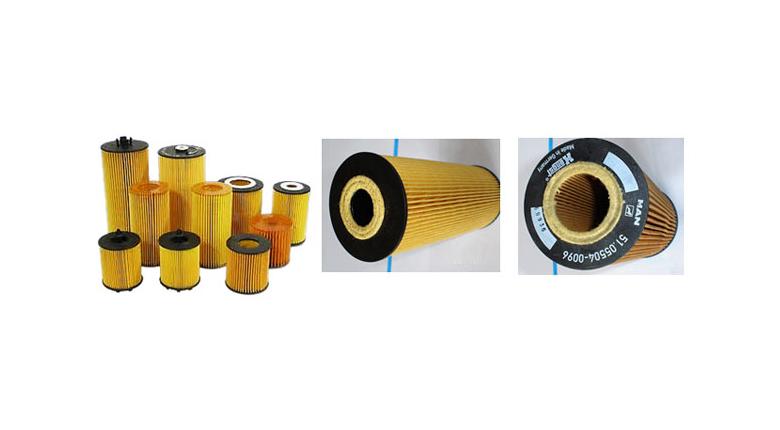

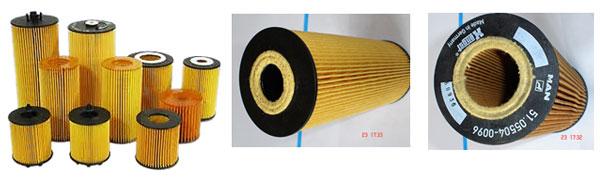

ㆍHOLDING PIPE JIG(FOR PAPER ELEMENT & NYLON ENDCAP)

ㆍEndcap Holding Jig
