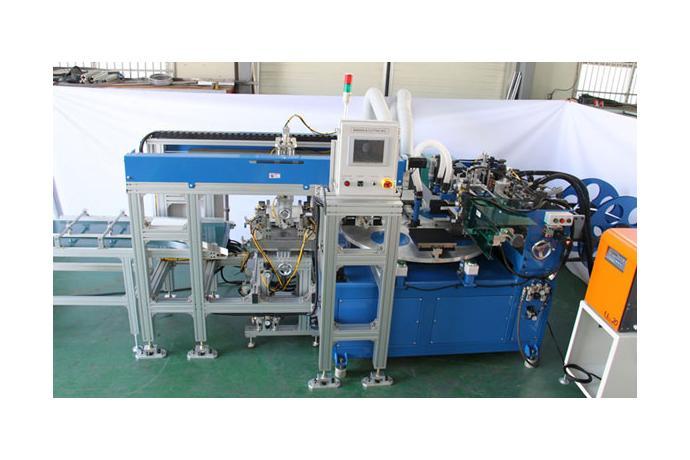

TECHNICAL DESCRIPTION

ㆍROTARY INDEX TABLE TYPE

ㆍAVAILABLE FILTER TYPE : SQUARE TYPE ONLY

ㆍ2 LINE SYSTEM(BOTH SIDE BINDING OPERATION)

ㆍAVAILABLE WIDTH : 100mm ~ 350 mm

ㆍAVAILABLE LENGTH : 100mm ~ 380 mm

ㆍAVAILABLE HEIGHT : 10mm ~ 50mm

ㆍAVAILABLE RIBON PAPER ROLL : MAX. 650mm

ㆍAVAILABLE RIBON PAPER ROLL CORE INDIA : 70mm

ㆍPRODUCTION CAPACITY : 4~6 pcs / min(2 Station Type) & 6~8 pcs/ min(4 Station Type)

ㆍHOTMELT APPLICATOR SYSTEM
   A) CAPACITY : 20Kg TANK/ 1 UNIT
   B) AUTO HOSE & AUTO GUN 2 SET

ㆍAC SERVO MOTOR : 220V x 450W

ㆍELECTRIC POWER : 380V/ 220V x 60HZ/ 50HZ x 3P/ 4P

ㆍPAPER FRAME WILL BE SUPPLIED BY SERVO FEEDING CONTROL SYSTEM

APPLICATION

ㆍTHIS MACHINE IS SPECIALLY DESIGNED FOR HOTMELTING OPERATION OF CABIN AIR FILTER.

ㆍTHAT IS, USE FOR SIDE FRAME BINDING OF CABIN AIR FILTER.

ㆍAVAILABLE FILTER TYPE IS SQUARE TYPE ONLY.

OPTIONAL PAPRT

ㆍHOTMELT ADHESIVE

ㆍAUTO GUN & HOSE

ㆍPAPER HOLDING JIG(CORE JIG)

ㆍCABIN MEDIA

ㆍNON-WOVEN PAPER(FOR SIDE FRAME)

ㆍAUTO UNLOADING DEVICE

ㆍAUTO CUTTING DEVICE
