Applications

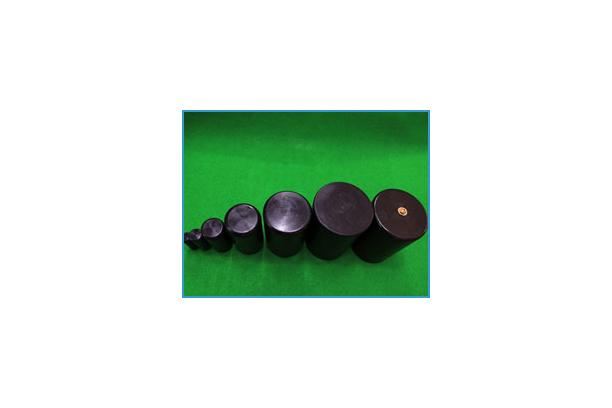

UNI-END CAPS is designed for sealing of power cable and telecommunication cable termination, cable termination, industrial pipe,conduits.
Also are suitable for protecting and insulation, water-proof of cable from humidity.
The cross-linked polyolefin tubing and inner wall is adhesive by hot-melt and polyamide.
Features
- shrink ratio: 3:1
- Operating temperature range: -55˚C to 105˚C
Ordering information
- Standard color : Black
- Type : 1) without valve End caps 2) with valve End caps
- Ordering description : specify product name, size, and color
[ex.UNI-END CAPS 15.0MM Black]
SPECIFICATION VALUES
| Properties | test methods | values |
| Density | ASTM D2671 | 1.1~1.2 |
| Thermal Endurance | IEC216 | -55˚C~105C˚ |
| Tensile Strength | ASTM D2671 | >12Mpa |
| Ultimate Elongation | ASTM D2671 | >400% |
| Accelerated ageing 168hrs at 136˚C | ASTM D2671 | |
| Tensile strength | >10Mp |
| Ultimate Elongation | >300% |
| Low temperature flexibility 4hrs at -40˚c | ASTM D2671 | No craking |
| heat shock 4hrs at 200˚C | ASTM D2671 | no drop/no flow |
| Dielectric strength | ASTM D2671 | >18kv/mm |
| Volume resistivity | ASTM D2671 | >10¹⁴ Ω.cm |
| Water absorption | ASTM D570 | <0.5% |
STANDARD SIZE
| SIZE | INSIDE DIAMETER | WALL THICKNESS | LENGTH | REMARKS |
| as supplied | after recovery | Nominal total wall
after recovery | mm |
| UNI 15/ 5 | 18.0mm | 5.0mm | 2.2mm | 50mm | - |
| UNI 22/ 9 | 23.0mm | 9.0mm | 2.5㎜ | 60mm | - |
| UNI 35/15 | 36.0mm | 15.0㎜ | 3.0㎜ | 90mm | - |
| UNI 55/25 | 57.0mm | 25.0㎜ | 3.5㎜ | 120mm | - |
| UNI 75/30 | 76.0mm | 30.0㎜ | 4.0㎜ | 135mm | - |
| UNI 95/40 | 100.0mm | 40.0㎜ | 4.5㎜ | 150mm | - |
| UNI 120/57 | 120.0mm | 57.0㎜ | | 155mm | - |
| UNI 140/60 | 140.0mm | 60.0㎜ | | 180mm | - |
