Product Name
Heat Shrinkable Tube
Model Name
KUHS-225
Size
-
Weight
-
Product Details

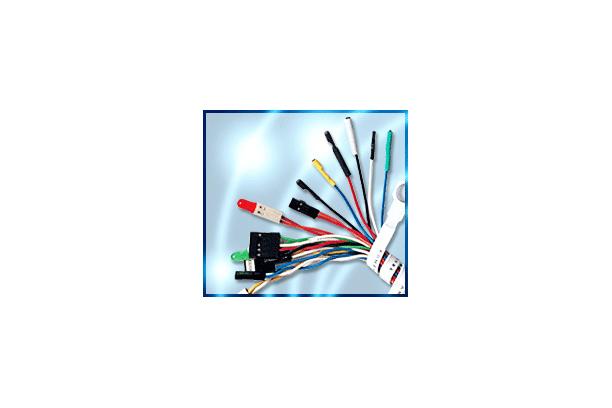

Applications
KUHS-225 is a flexible , flame-retardant heat shrinkable polyolefin tubing. It is designed for a wide range of applications including electrical insulation , strain relief , cable bundling , and color coding and identification of wires , cables , and electrical & electronic components , mechanical protection.
Features
- UL-224 125℃ 600V VW-1 File NO. : E157822
- CSA C22.2 NO.198 125℃ 600V File NO. : LR89935
Features
- Self-extinguish polyolefin heat shrinkable tubing crosslinked by irradiation
- Tubing having shrinkage at comparatively low
- Operating temperature range : -55℃ to 125℃
- Flammability : UL VW-1
- UL224[ File NO. : E157822, 600V, 125℃ , except clear]
Ordering Information
- Standard color : Black , White, Red , Yellow , Blue , Green(*special colors are available upon request)
- Standard packaging : On spools
- Ordering description : specify product name, size, and color [ex. KUHS-225 3.0mm Black]
SPECIFICATION VALUES
| Properties | Test Methods | Values | ||
| Physical | Unaged | Tensile strength | ASTM D 412 | Min. 1.1kgf/㎟ |
| Elongation | UL 224 | Min. 200% | ||
| Aged | Tensile strength | ASTM D 412 UL 224 158℃/168hrs |
Min. 0.8kgf/㎟ | |
| Elongation | Min. 100% | |||
| Heat shock | UL 224 | Pass@250℃X4hrs | ||
| Low temperature flexibility | ASTM D 2671 | NO crack@-55℃X4hrs | ||
| Secant modulus | UL 224 | Max.173MPa | ||
| Electrical | Dielectric strength | UL 224 | Min. 2500V/1min | |
| Volume resistivity | ASTM D 257 | Min 1X10¹⁴Ω-㎝ | ||
| Chemical | Copper corrosion | UL 224 158℃/168hrs | No corrosion No sign of degradation Min. 100% |
|
| Copper stability Elongation | ||||
| Flammability(VW-1) | UL 224 | Pass |
||
STANDARD SIZE
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
- Special order size are available upon request
- Wall thickness will be less if tubing recovery is restricted during shrinkage
Applications field
