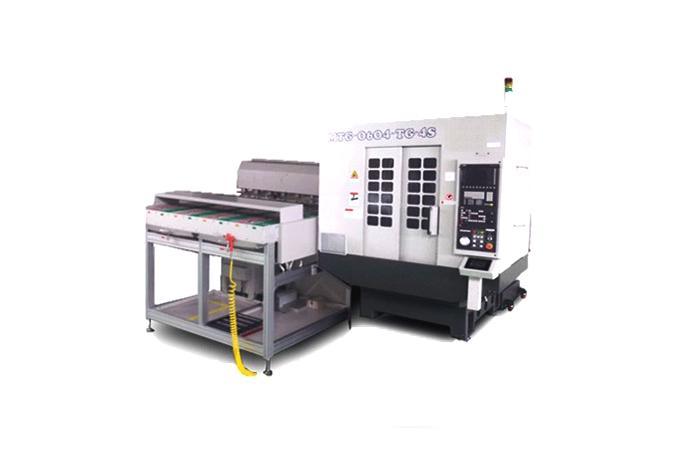

TOPS MTG Model



Highest precision-completely-automatized grinding system

Acquire Grinding Apparatus of Thin plate glass for display / Centering JIG of thin plate glass for display Patent

Optimum Working Area

MTG-0604-TG : 600 mm(X-Axis) X 400mm(Y-Axis) X 4000mm(Z-Axis)
MTG-0403-TG : 400 mm(X-Axis) X 300mm(Y-Axis) X 4000mm(Z-Axis)

Grinding Table System

- Configuration of high stiffness LM guide & column traversing method

- Capable of high precision traverse in Ball-Screw traversing method

- Configuration of strong high speed processing with 3 or 4 spindles

- High precision system to improve the accuracy of product : accuracy of location of direct line : ±0.005mm, accuracy of recursive localization : ±0.003mm

- Application of high output system to improve the durability of equipment

- High speed traverse to shorten processing time : X-Axis/Y-Axis/Z-Axis : 45,000 mm/min/li>

Loading/Unloading device & jig

- Jig of automatic center-determining method

- Operation of jig in rack and pinion method to shorten maintenance time and improve the accuracy of jig position

- Justification bolt method to shorten jig setting time

- Application of individual motor operating method to shorten tool setting time

- Application of built-in servo motor operating method to improve work efficiency & productivity

Configuration of CNC control unit with high user-friendliness and reliability

- Application of excellent reliability through CNC servo control method

- Whole control method of jig & loading/unloading unit

- Function of automatic continuous operation

- Function of manual operation control
