Product Name Accessory
Model CS-99/M
Series Accessory
Catalog
Product Description

– Converts DE9(male) to terminial block





Overview

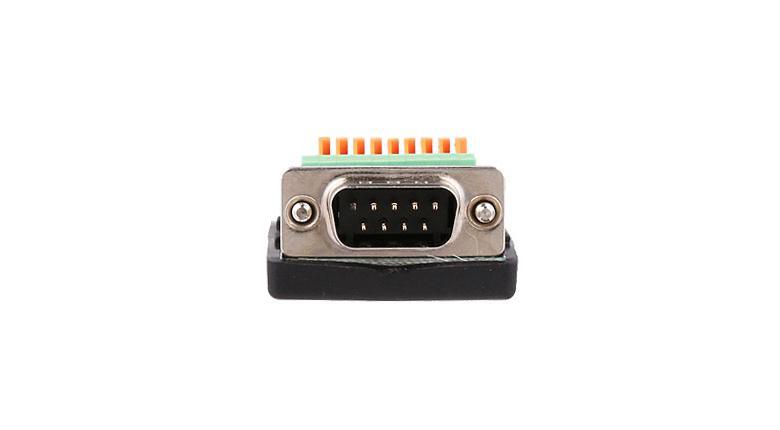

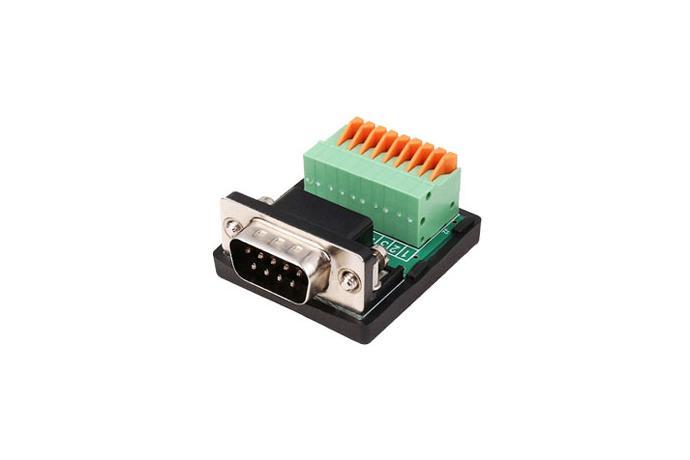

CS-99/M is DE9(male) to 9 pin terminal block converter without any screws.

When using the serial communication in a variety of industrial equipment, sometimes it requires to use terminal block instead of d-sub connector. In this case the user would have to make a separate cable for the serial port.

CS-99 is a product designed to solve such inconvenience.



Hardware

  Dimension (W x L x H)35 X 42 X 19 mm
  Weight21g
  ConnectorDE9 male

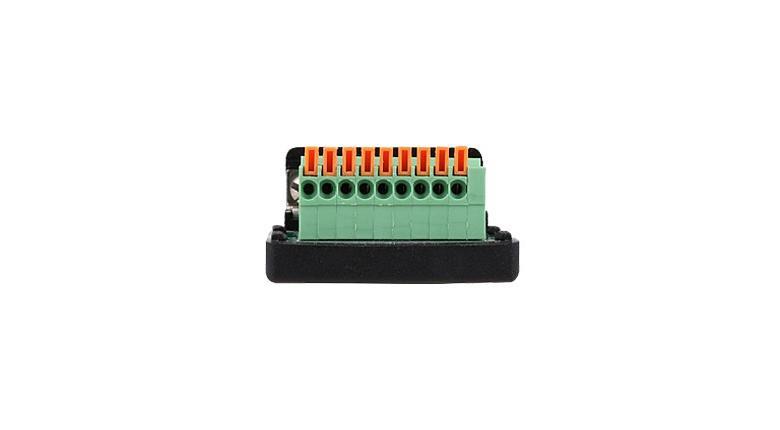

Screwless Terminal Block 9 pin
  Power ConsumptionDE9: 250V/1.5A
Terminal Block: 150V/2A
  Recommended CableTerminal Block: 20 ~ 26 AWG

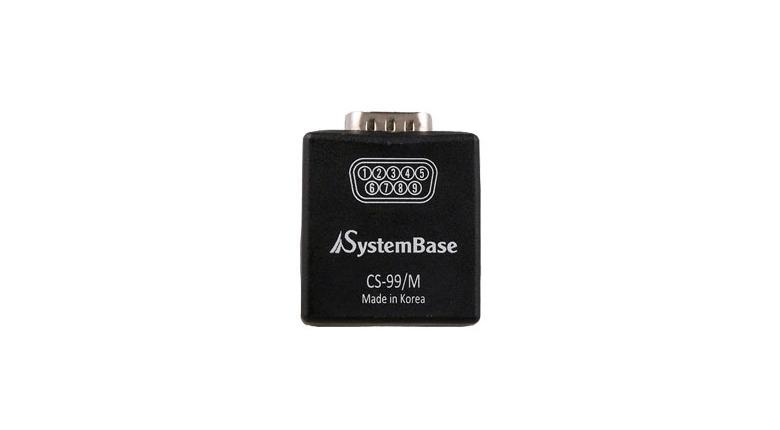

SystemBase  CS-99/M

Each pin is one to one correspondence from DE9 to terminal block.
*Attention: Pin 5 is connected to chassis ground.
