– Standard PCI Local Bus Specification Rev. 2.3 Compliant
– Built-In PCI Target Controller @ 33/66MHz
– Built-In 2 Improved 16C1050 UART with 256 Byte FIFO
– Global Interrupt and Control Pins for RS422/485 Auto Toggling
– Supports H/W and S/W Flow Control

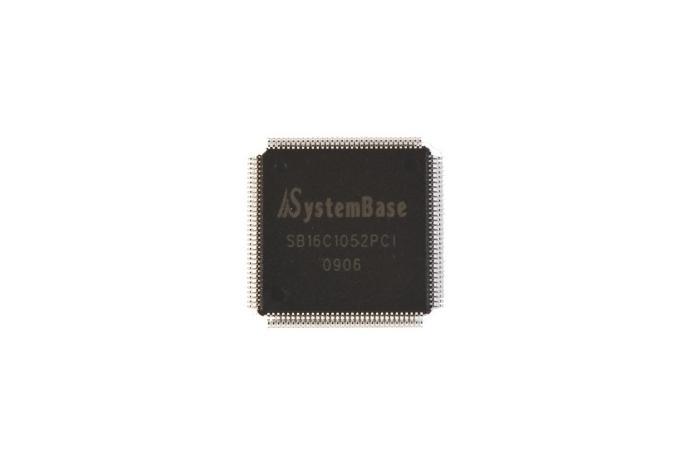

SB16C1052PCI is a single chip which enables 2 asynchronous serial communication ports to be connected to a PCI bus without any glue logic and it is the best solution to constitute a serial port for the PCI bus. It allows customer to make easy and simple reference design as a one-chip solution for 1 port or 2 ports multi-port serial cards. It includes SB16C1052, Dual UART with 256-Byte TX/RX FIFO developed by SystemBase. It also has enhanced features, global interrupt and dedicated control pins for RS422/485 auto toggling. The 256-byte FIFOs reduce CPU overhead and allow higher data throughput.
| PCI Interface | Standard PCI Local Bus Specification Rev. 2.3 compliant |
| Built-In PCI Target Controller | |
| Supports 33MHz and 66MHz Bus Operation Speed | |
| Applicable to a high speed bus, PCI-X slots | |
| Option Register provided for the control and information of UART | |
| Downloads the Configuration header data from external serial EEPROM | |
| UART Interface | Dual-Channel UART(Universal Asynchronous Receiver and Transmitter) |
| 256 Byte Transmit/Receiver | |
| Register Set Compatible with 16C550 and 16C650 | |
| Serial Data Rate of Up to 5.3Mbps & System Clock Up to 85MHz | |
| Software/Hardware Flow Control & Xoff Re-Transmit Function | |
| Auto Toggling pins for RS422 and RS485 network | |
| Internal Diagnostic Capabilities | |
| Other Information | 3.3V I/O, 5V Tolerance |
| TQFP128 Package |
