SYSTEM KOREA

SYSTEM KOREA

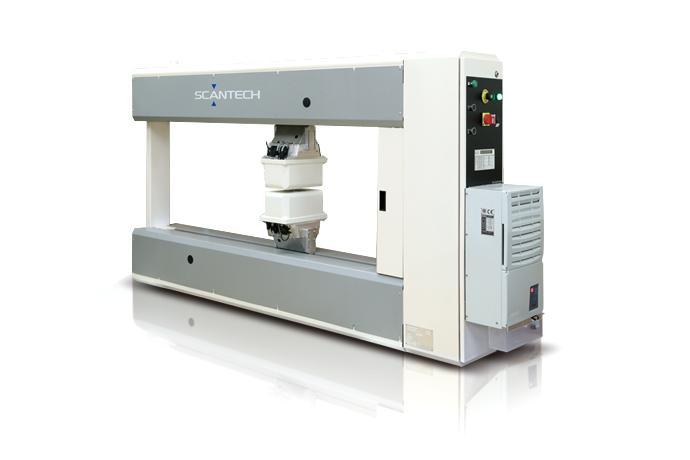

Online X-ray Thickness Gauge

Model

Series

Products


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.


Description

CHARACTERISTICS

Accurate reading : low statistical noise (10 x less than beta ray & I/R): better streak resolution
no diffusion error (versus beta ray), no flutter error (versus beta ray)

Accurate reading : dynamically, 1 - 200 (e.g.: 5 μ - 1,000 μ)

Accurate reading : below 5 Kev

Fast reading : solid-state receiver is 500 x faster.
better streak resolution: edge reading, higher scanning speed, with no loss in accuracy: better APC

Stable reading : very stable beam emission: patented HT for X-ray tube
                 no XY axis distortion: measurement signal is uniform within the receiver window
                 no Z axis distortion: dynamic compensation of air column
                 no environment distortion: detection spot is isolated
                 no time drift: continuous auto-zeroing of complete system

Flexible system : air-gap adjustment: 10 - 40 mm
                  spot size adjustment: 1 - 8 mm
                  spot shape adjustment: circular or rectangular (strip reading)

User-friendly system : measurement insensitivity makes system maintenance far
                       less critical: mechanical adjustment, time drifting
                       long-life tube: over 10 years - no maintenance required
                       solid-state receiver: easy handling and robust device

SYSTEM KOREA Online X-ray Thickness Gauge
