Manufacturer
MOBASE SUNSTAR
Product Type
Machine
Brand
-
SKU
56245
Product Name
Pattern
Model Name
SPS, F-2516, 3020 Series
Size
-
Weight
-
Product Details

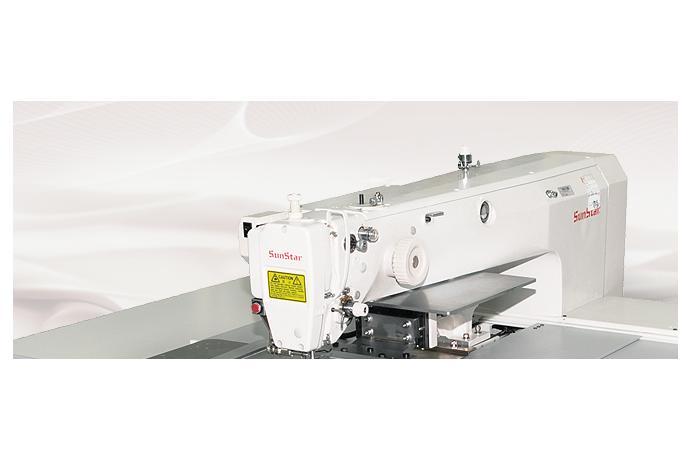

Electronically Controlled, Pattern Sewing Machine
Specifications
| Model | Application | Max. sewing speed [spm] | Stitch length [mm] | Needle | Lubrication | Auto thread trimming | Motor | Sewing area [mm] | No. of input patterns | No. of input stitches | Lift of the presser foot [mm] | Hook | ||||
| Hand | Knee | Auto | Drive type | Position | Size | |||||||||||
| SPS/F-2516G | Medium | 2,700 | 0.05~12.7 | DPx17, DPx5 | Semi-auto | Yes | Servo motor(Direct) | X:250 Y:160 | 2,100 | 360,000 | - | - | 20 | Shuttle | Vertical | x2 |
| SPS/F-2516H | Heavy | 2,700 | 0.05~12.7 | DPx17, DPx5 | Semi-auto | Yes | Servo motor(Direct) | X:250 Y:160 | 2,100 | 360,000 | - | - | 20 | Shuttle | Vertical | x2 |
| SPS/F-3020G | Medium | 2,700 | 0.05~12.7 | DPx17, DPx5 | Semi-auto | Yes | Servo motor(Direct) | X:300 Y:200 | 2,100 | 360,000 | - | - | 20 | Shuttle | Vertical | x2 |
| SPS/F-3020H | Heavy | 2,700 | 0.05~12.7 | DPx17, DPx5 | Semi-auto | Yes | Servo motor(Direct) | X:300 Y:200 | 2,100 | 360,000 | - | - | 20 | Shuttle | Vertical | x2 |
