Sungmin Instruments, established in 1988, is a leading specialized manufacturer of cable-related measurement and testing equipment and major facilities, achieving import substitution and supplying core equipment to domestic and international cable industries. The company develops and provides various testing instruments, including high-frequency spark testers, AC spark testers, and laser micrometers, for electrical, electronic, precision machinery, and cable sectors. Through continuous R&D of core technologies and consistent quality improvement, the company has built strong trust in both domestic and global markets. It maintains a long-term vision and robust management to ensure steady corporate growth in the rapidly changing global market.

1988년 설립 이후 국내외 전선 산업에 핵심 장비를 공급하며 수입 대체 국산화를 이룬 국내 최대의 전선관련 계측 시험기 및 주요 설비 제작 전문 기업. 전기, 전자, 정밀기계, 전선 산업 분야에 필요한 고주파 스파크 테스터, AC 스파크 테스터, 레이저 외경 측정기 등 다양한 계측 시험기 개발 및 공급. 지속적인 핵심 기술 연구 개발과 품질 향상을 통해 국내외 시장에서 신뢰를 구축한 기업. 급변하는 세계 시장에 대한 장기적인 안목과 내실 있는 경영을 추구하는 전선 관련 전문 기업.

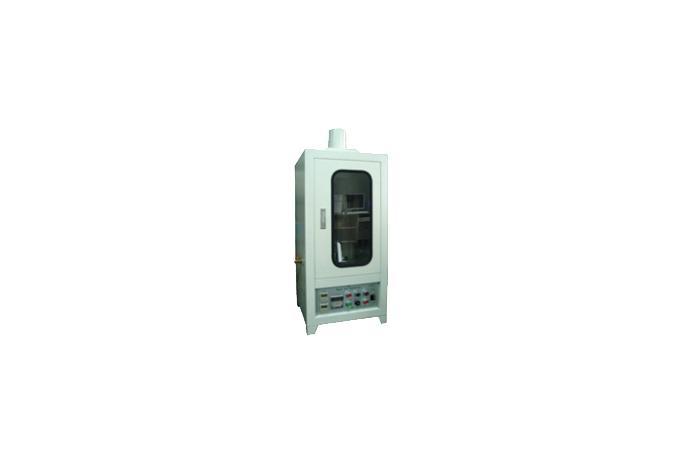

Model	SM-1581	SM-851
Related standards	UL 1581	IEC 60332-1
Sample support	Vertical and horizontal sample support	Vertical and gripper mounted type
Spark ignition angle	20°	45°±2(Slide Type)
Ignition type	Automatic ignition	Automatic ignition
Extinguishment type	Timer setting/auto extinguishment 15 second ignition, 15 second off Attachment of repetitive ignition setting counter	Timer setting
Flow control	Flame length control	GAS: 0-25l/min?Requlator control AIR : 0-100cc/min-Requlator control
Burner	LPG GAS Bunsen Burner	Advance-mixed burner (IEC 60695-2-4-1 standards)
Internal size of sample box	305 x 610 x 355	300 x 450 x 1200 ± 25mm
Product size	400 x 500 x 1300	1600 x 730 x 2100
Power supply	220VAC 50/60Hz 1Phase	220VAC 50/60Hz 1Phase
