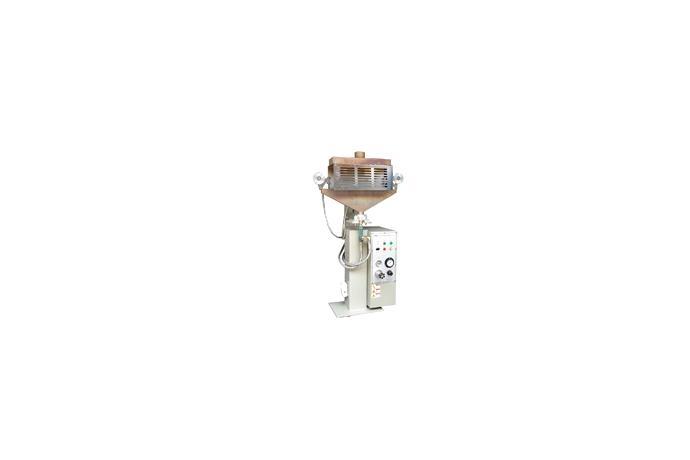

Sungmin Instruments Cable Surface Treatment CM-200/400/GAS

CM-200
Corona Master is composed of a high frequency generator and electrode unit.
The electrode initiates corona discharging with the peeled off cables by supplying high frequency, high voltage. As a result, the coating surface
(PE, PVC, TEFLON, HDPE, or LDPE) is activated to improve the adhesion power in the second process-printing and adhesion.

Sungmin Instruments Cable Surface Treatment CM-200/400/GAS 1

CABLE SULFOS TREMENT There are two types available - Electric Corona Discharging type and Gas Plasma type.
Gas Corona type uses a mixture of air and gas.
Compared to the Electric Corona Discharging type, it has better surface activation effects.


Product Specs

MODEL CM-200 CM-400 CM-GAS
Output frequency 20 ~25Kkz 20 ~25KHz Gas flame
Capacity 1 KVA 3 KVA 1000℃
Output voltage 5 ~12KV 3 ~10KV
Electrode 220mm 800mm 260mm Burner
Supply Cable Printing Sheet/Film Adhesive Printing Cable Printing
Size 500X1425X620 600X1200X650
Power supply 220VAC 50/60Hz 1 Phase
