Pad Mounted Transformer
Model Name
-
Series
Oil Immersed Type
Data
-
Manufacturer information
provider logo
Sungjin General ElectricTransformer manufacturer, Distribution mold transformer
Problem with product info?
Update request
Manufacturer
Sungjin General Electric
Brand
-
SKU
37463
Product Name
Pad Mounted Transformer
Model Name
-
Size
-
Weight
-
Product Details

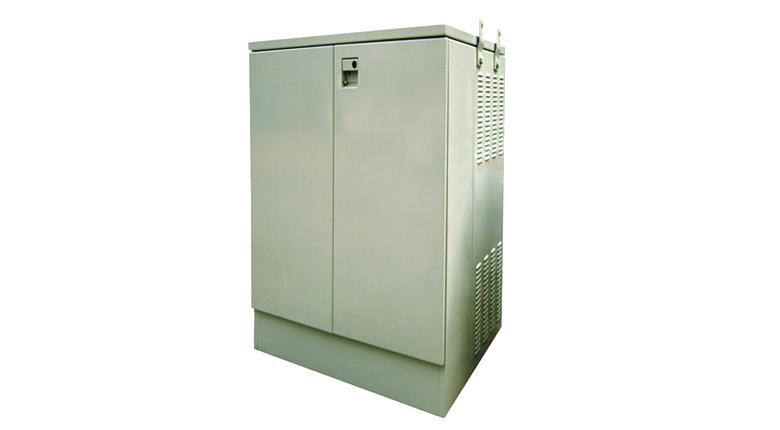

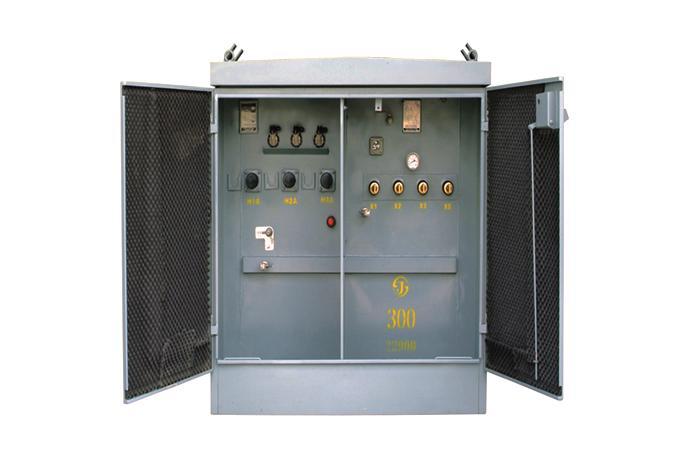

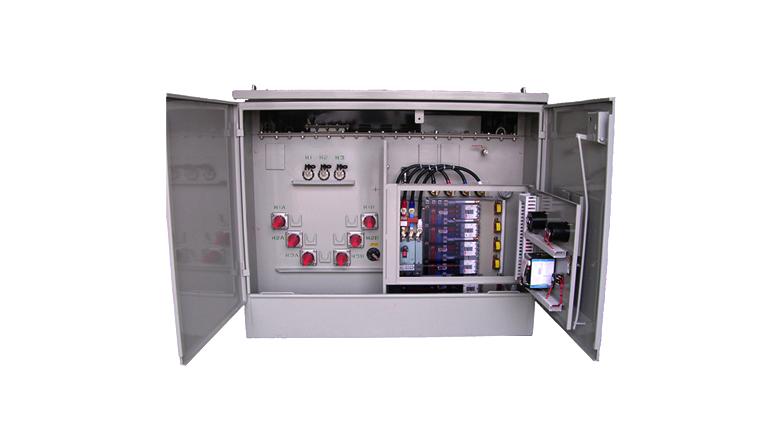

Pad mounted transformer

Pad mounted transformer is mounted on the substation of underground transmission line, and it, characterized by simple and elegant exterior with little risk, has fuses for electronic protection, which means that It is suitably used and installed in the substation of a residential street, a park, a school and a golf course.


Applicable Standard

IEC, ANSI, IEEE, JIS, JEC, KS

Capacity

Up to 5000kVA

Frequency

60Hz, 50Hz

Secondary voltage

Up to 34.5kV

Temperature rise

L.V

Temperature rise

Oil

Winding

60℃
65℃

Cooling system

ONAN
Sungjin General ElectricTransformer manufacturer, Distribution mold transformer
Since we started business as a manufacturer of transformer, we have only concentrated to manufacture the best transformer for 20 years, and stepped forward to give you the best quality for human being. Since the commencement of an enterprise with motto “All in the only one”, we earned certificates of ISO(ISO 9001:2000, ISO 14001:2004), KS certificate (KSC4306), a certificate of INNO-BIZ with all staff’s efforts, and we manufacture Dry transformer (Cast resin transformer), oil filled transformers, high-efficiency transformers, and low-noise transformers by using the best facilities and techniques. We are expanding our business to the global markets. (East-Southern Asia, Middle-East Asia, Africa and so on) as well a home industries. We promise that Sungjin General Electric would give you the best products and step up in the world.
