Video Matrix Switcher (본체)

Model

Series

Video Controller


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.


Description

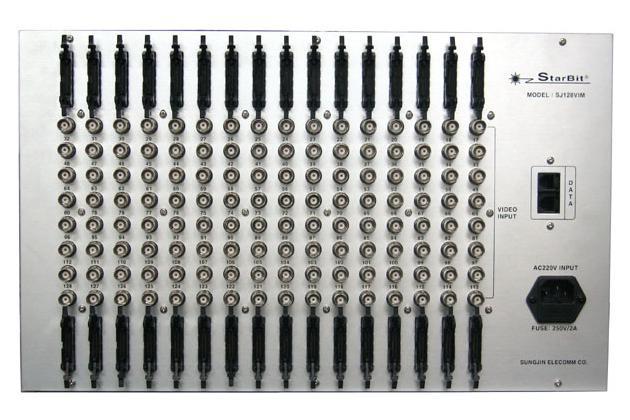

본체 SJ128256VIM으로 부터 영상을 입력받아 신호의 증폭 및 외부로 부터의 서지억제 등의

메트릭스 출력단의 비디오 신호를 처리하는 기기입니다.

이 기기는 장비 자체로만 작동되는 기능은 없으며 MPU, PC 등에 의해서 제어 작동 됩니다.

모듈 PCB는 ID 입력카드 TYPE 과 ID NON TYPE 두 가지가 있습니다.

▶128영상 입력, 128영상 출력 (최대 16개 출력 모듈 삽입시)

▶Low Cross Talk (-60dB at 4Mhz)

▶주요기능 제어포트 RS232/RS422/RS485 Host Interfae(ID 입력카드 사용시 사용)

▶Baud Rate   4800,9600,19200,115200

▶제어콘넥타      RJ-11 6P Modular Jack & DSUB9

▶영상입력         128in / NTSC,PAL Composite Video,

▶영상출력         8 ~128out / 1Vpp 75ohm (1 모듈당 8출력씩 증가)

▶입출력 콘넥타    입력: Coaxial Ribbon Cable   출력:BNC

▶Bandwidth        8Mhz

▶CrossTalk         -70dB at 4Mhz

▶동작온습도        0~60'  / 10~80%

▶사용전압           220V , 60hz

▶사용전력           본체 10W / SJ0808MOM(모듈당 4W)

▶무게                  15 Kg (카드 16모듈 장착시)

▶케이스 사이즈    19" Rack 4U / 300D x 483W x 176H

▶케이스 색상       MUNSHELL CODE NO. 8.2Y 7.7/0.8주요사양
