EPS Pre-Expanders, Block molding machine, Shape molding machine, Cutting machines, Scrap crusher and more

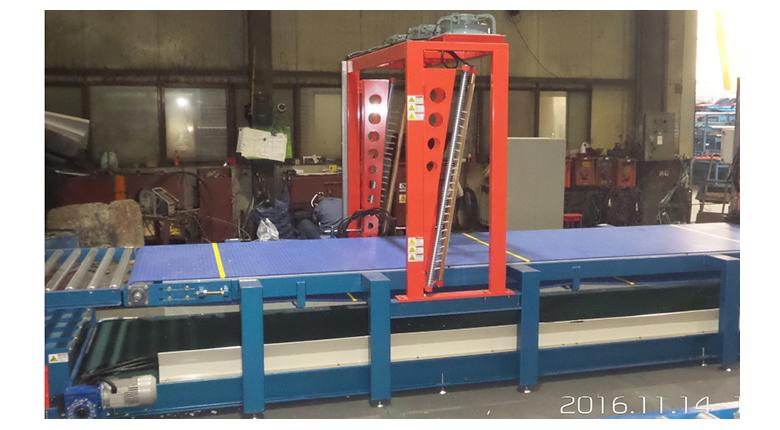

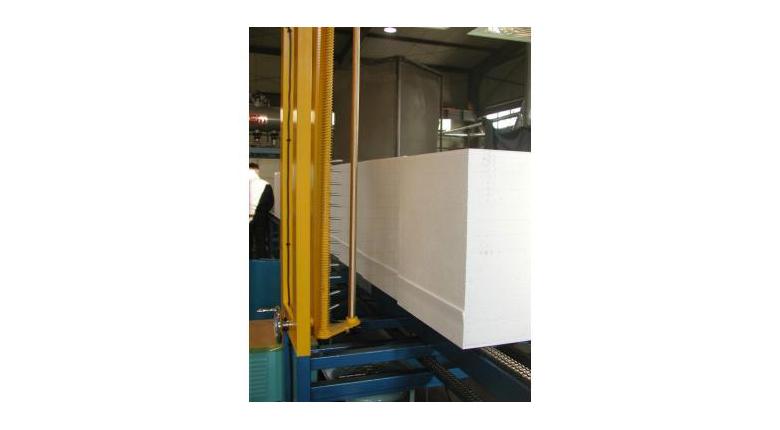

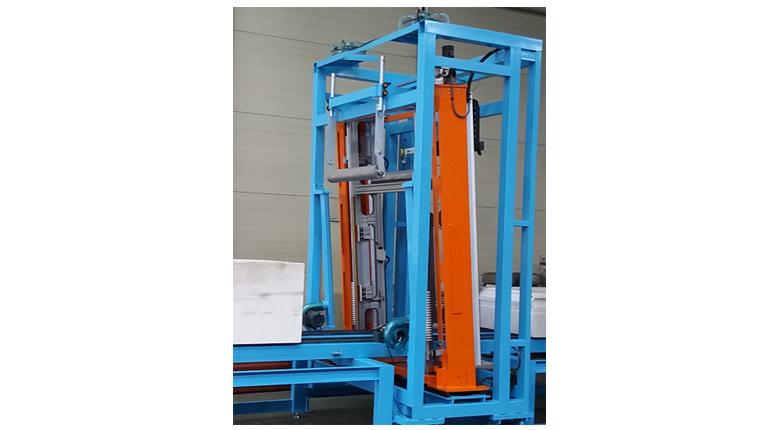

Full Automatic Cutting Machines
1. Automatic wire-setting and oscillation cutting function will give you safety,speed and efficiency.
2. This is also unique in the world. For changing the many vertical heat wires, its conveyer is opened automatically.
3. Multiple frame of electrode saves the time of changing heat wires.
4. Individual control panel every cutting work, is comfortable to control speed and heat temperature.
5. Automatic scrap collecting system make you recycle the scrap at sight and save you space,time and also cost.
|
NO |
CUTTING MACHINES PARTS |
SHC36 |
SHC48 |
SHC312 |
SHC412 |
|
1 |
FEEDING CONVEYOR ROLLER |
2500 x 1200 x 850 |
4000 x 1500 x 850 |
5000 x 1200 x 850 |
500 x 1500 x 850 |
|
2 |
4 FACE CUTTING |
2500 x 1500 x 1200 |
3100 x 1800 x1800 |
4400 x 1500 x 1500 |
4400 x 1800 x 1800 |
|
3 |
HIGH SPEED CONVEYOR |
2000 x 900 x 850 |
3000 x 1500 x 850 |
4000 x 1200 x 850 |
4000 x 1500 x 850 |
|
4 |
THICKNESS CUTTING |
3600 x 1500 x 950 |
5000 x 1800 x 1400 |
6500 x 1500 x 1400 |
6500 x 1800 x 1400 |
|
5 |
TRANSFER CONVEYOR ROOLER |
1500 x 1200 x 850 |
2500 x 1500 x 850 |
4000 x 1200 x 850 |
4000 x 1500 x 850 |
|
6 |
AUTOMATIC BANDER |
700 x 1050 x 850 |
700 x 1350 x 850 |
700 x 1050 x 850 |
700 x 1350 x 850 |
|
7 |
TRANSFER CONVEYOR |
1500 x 1200 x 850 |
1500 x 1200 x 850 |
1500 x 1200 x 850 |
1500 x 1500 x 850 |
|
8 |
MANUAL CONVERYOR |
2000 x 1000 x 850 |
2500 x 1200 x 850 |
3000 x 1000 x 850 |
3000 x 1200 x 850 |
