product Image

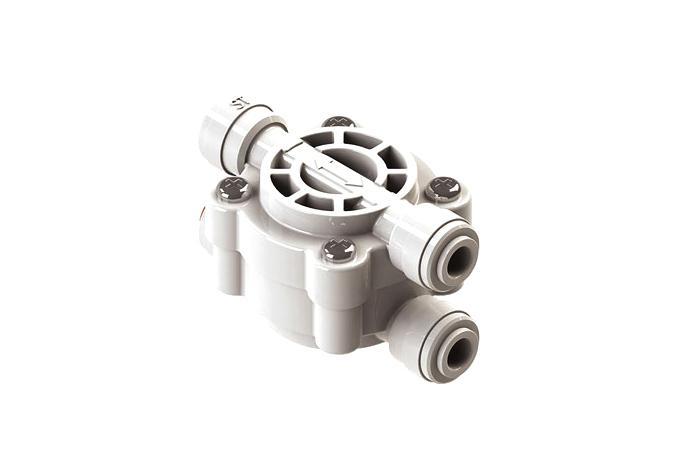

Auto Shutoff Valve
Model Name
ASV-FF-140
Series
Auto Shutoff Valve
View All
Data
-
Manufacturer information
provider logo
STORMTEC

Water purifier parts manufacturer, Tubing, Reducing valve, One touch fitting and more

Problem with product info?
Update request
Manufacturer
STORMTEC
Product Type
Machine
Brand
-
SKU
35900
Product Name
Auto Shutoff Valve
Model Name
ASV-FF-140
Size
-
Weight
-
Product Details
WORKING PRESSURE OFF PRESSURE ON PRESSURE PACKAGE 1 BOX
2.0~8.5 bar(30~120psi) 64±15% 23±15% 100 EA
INLET PORT OUTLET PORT BURST PRESSURE WORKING TEMPERATURE
1/4“ FITTING 1/4“ FITTING 33.8 bar (480psi) 1~40℃ (33~104℉)



GENARAL SPECIFICATION
It is a diaphragm type direct action Auto Shutoff Valve for Reverse Osmosis type water purification system.
This is mechanic valve and it operates by the pressure diffential.

The most noticeable point in this valve is the silence and enhanced durability.
The Auto Shutoff Valve is certified by NSF/ANSI 58 (Reverse Osmosis Drinking water Treatment system)

ON/OFF controlling performance

P1

P2



P1

P2

OFF

ON

OFF

ON

1

0.9

0.2



14

13

3

2

1.4

0.4

28

20

5

3

2.0

0.7

42

28

10

4

2.5

0.9

57

35

13

5

3.1

1.2

71

44

17

6

3.7

1.4

85

52

20

7

4.3

1.6

100

61

23

8

5.0

1.9

114

71

27
