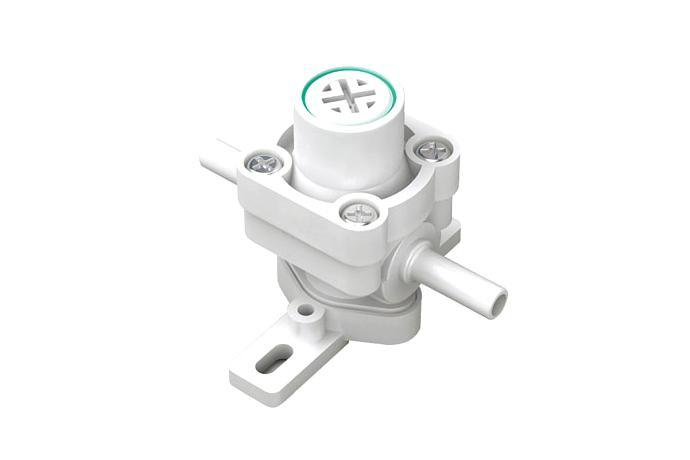

Pressure Reducing Valve
Model Name
PRV-NNB
Series
Pressure Reducing Valve
Data
-
Manufacturer information
provider logo
STORMTECWater purifier parts manufacturer, Tubing, Reducing valve, One touch fitting and more
Problem with product info?
Update request
Manufacturer
STORMTEC
Brand
-
SKU
35892
Product Name
Pressure Reducing Valve
Model Name
PRV-NNB
Size
-
Weight
-
Product Details
WORKING PRESSURE (P1) REDUCING PRESSURE (P2) TOLERANCE RATE FLOW
0.2~10bar (3~142psi) 2.0 ~ 3.5bar (20~50psi) ±10% 7.0ℓ/min
BRACKET INLET PORT OUTLET PORT PACKAGE 1BOX
O 1/4“ Stem 1/4“ Stem 100EA



GENERAL SPECIFICATION

The pressure reducing valve is a function valve regulating and controlling the feed water.
Normally, this valve is equipped in front of filters and protecting the filters by reducing feed water.

WORKING PRESSURE

0.2~10bar (3~142psi)

REDUCING PRESSURE

2.0 bar (28psi),
2.5bar (35psi), 3.0bar(42psi), 3.5bar(50psi)

RATED FLOW

Minimum 7.0ℓ/min

HYDRAULIC PRESSURE

19.5bar (277psi)

BURSH PRESSURE

33.5bar (480psi)

VALVE CONSTRUCTION

Diaphragm type
