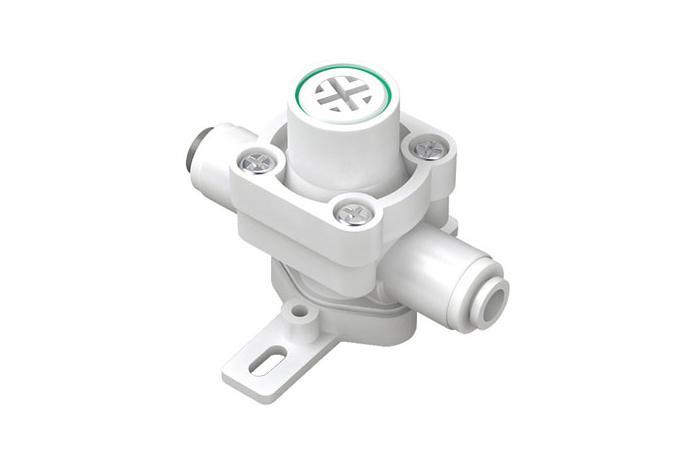

Pressure Reducing Valve

Model Name

PRV-FFB

Series

Pressure Reducing Valve

View AllView All Series

Data

Manufacturer information

STORMTEC

Water purifier parts manufacturer, Tubing, Reducing valve, One touch fitting and more

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

STORMTEC

Product Type

Machine

Brand

SKU

35890

Product Name

Pressure Reducing Valve

Model Name

PRV-FFB

Size

Weight

Product Details

WORKING PRESSURE (P1)	REDUCING PRESSURE (P2)	TOLERANCE	RATE FLOW
0.2~10bar (3~142psi)	2.0 ~ 3.5bar (20~50psi)	±10%	7.0ℓ/min
BRACKET	INLET PORT	OUTLET PORT	PACKAGE 1BOX
O	1/4“ Fitting	1/4“ Fitting	100EA

GENERAL SPECIFICATION

The pressure reducing valve is a function valve regulating and controlling the feed water.
Normally, this valve is equipped in front of filters and protecting the filters by reducing feed water.

WORKING PRESSURE	0.2~10bar (3~142psi)
REDUCING PRESSURE	2.0 bar (28psi), 2.5bar (35psi), 3.0bar(42psi), 3.5bar(50psi)
RATED FLOW	Minimum 7.0ℓ/min
HYDRAULIC PRESSURE	19.5bar (277psi)
BURSH PRESSURE	33.5bar (480psi)
VALVE CONSTRUCTION	Diaphragm type
