Solenoid Valve

Model Name

NOS-NN

Series

Solenoid Valve

View AllView All Series

Data

Manufacturer information

STORMTEC

Water purifier parts manufacturer, Tubing, Reducing valve, One touch fitting and more

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

STORMTEC

Product Type

Machine

Brand

SKU

35886

Product Name

Solenoid Valve

Model Name

NOS-NN

Size

Weight

Product Details

WORKING PRESSURE	RATED VOLTAGE	TOLERANCE
0.2~10bar (3~142psi)	DC 12, 24V	-15~+10 %
INLET PORT	OUTLET PORT	PACKAGE 1 BOX
1/4“Stem	1/4“Stem	100EA

GENERAL SPECIFICATION

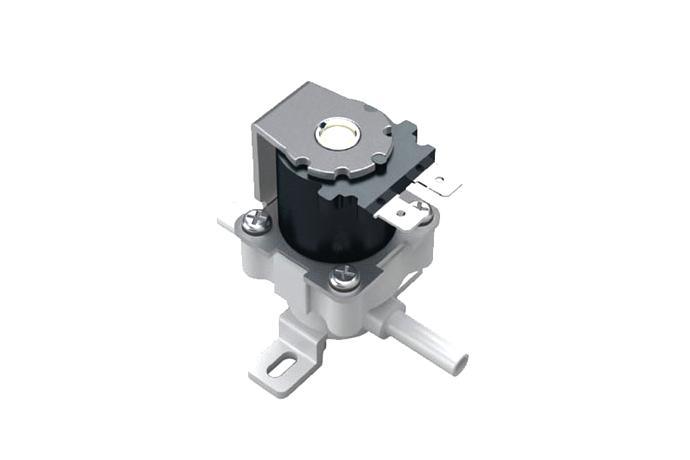

It is a normal open type high pressure solenoid valve (NOS valve).
Mostly, this NOS valve is equipped at the safety device and control the feed water. The valve is widely used in dishwasher,
Boiler, urinal and other appliances, especially at the safety unit.

WORKING PRESSURE	0.2~10bar (3~142psi)
RATED VOLTAGE	DC 12V, 24V
TOLERANCE	-15~+10%
HYDRAULIC PRESSURE	19.5bar (277psi)
DUTY TIME	Continuous
WORKING TEMPERATURE	1~40℃ (33~104℉)
AMBIENT TEMPERATURE	Less than 104℉
WIRE INSULATION TYPE	E2UEW (248℃ Urethane Enamel Wire)
VALVE CONSTRUCTION	Pilot type poppet
COIL TEMPERATUREINCREASING	Less than 176℉ in a rated voltage
