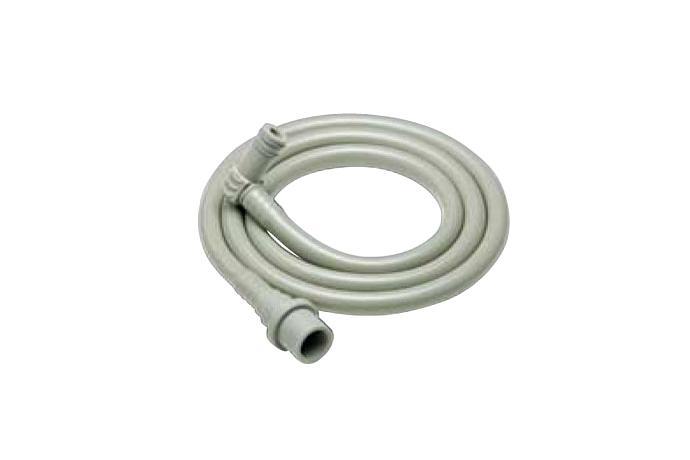

Product Name Drain Hose
Model ST-DR-HO1/HO3
Series Fitting
Catalog
Product Description
COLOR CODE NO DESCRIPTION PACKAGE 1 PACK PACKAGE 1 BOX
WHITE ST-DR-HO1 1m DRAIN JOSE - 100 EA
WHITE ST-DR-HO3 3m DRAIN JOSE - 50 EA



GENERAL SPECIFICATION

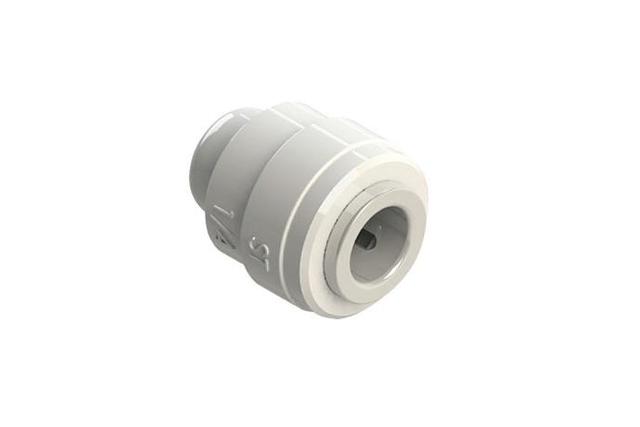

ㆍOne Touch Fitting (ST fitting) has been widely used in various ranges of potable appliances. ST fittings offered in sized 1/4″ to 1/2″ and manufactured with POM and NBR materials.

ㆍThe products’ safety is certified for achieving the NSF 51&61.

ㆍIt’s easy to connect/disconnect without using a tool.

Note

It is not recommended for explosive gages, heating system and othre pretroleum products.

WORKING TEMPERATURE & PRESSURE

  1/4″ 5/16″ 3/8″ 1/2″
1℃
(34°F)
15.5 bar
(230psi)
15.5 bar
(230psi)
11.5 bar
(170psi)
11.5 bar
(170psi)
20℃
(68°F)
15.5 bar
(230psi)
15.5 bar
(230psi)
11.5 bar
(170psi)
11.5 bar
(170psi)
65℃
(149°F)
10.0 bar
(150psi)
10.0 bar
(150psi)
6.9 bar
(100psi)
6.9 bar
(100psi)



NOTICE

ㆍBefore connecting the tubing into the fitting, make sure the end of the tubing must be cut vertically an must not be damaged/scratched.

ㆍFitting and tubing are recommended using at the potable appliances. Or, the advice from STORMTEC is necessary before the fitting & tubing equipped into a machine.

ㆍMake sure the pressure in the machine has been removed before disconnecting hte fitting and tubing.

ㆍDo not retate, twist, bend and force the fitting and tubing. those excess can cause a malfuncting, leaking and potential defect.

ㆍWe recommend using a fitting spanner while the user disconnects fitting and tubing.

ㆍWe guarantee the fitting and tubing for 2years and it must be changed within the period.

ㆍWe recommend to cut the scratched tubing and reuse it with spotless condition
