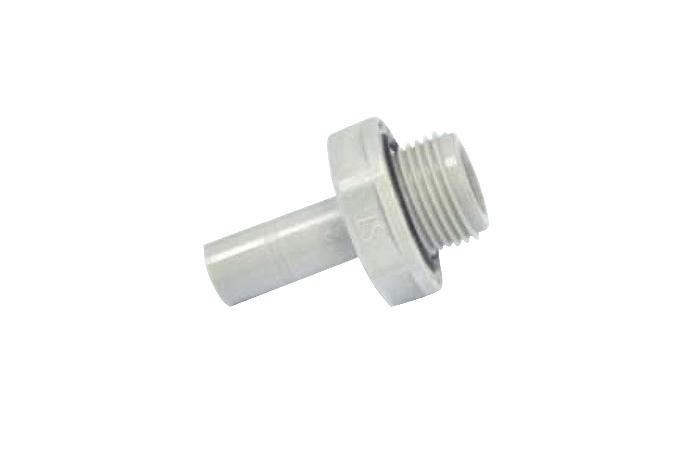

Product Name Stem Adaptor
Model ST-2602G/2604G
Series Fitting
Catalog
Product Description

Gray

COLOR

CODE

TUBE SIZE

THREAD SIZE

PACKAGE 1 PACK

PACKAGE 1 BOX

GRAY

ST-2602G

3/8″ OD

3/8″BSP

200EA

800EA

GRAY

ST-2604G

3/8″ OD

1/2″BSP

200EA

800EA



GENERAL SPECIFICATION

ㆍOne Touch Fitting (ST fitting) has been widely used in various ranges of potable appliances. ST fittings offered in sized 1/4″ to 1/2″ and manufactured with POM and NBR materials.

ㆍThe products’ safety is certified for achieving the NSF 51&61.

ㆍIt’s easy to connect/disconnect without using a tool.

Note

It is not recommended for explosive gages, heating system and othre pretroleum products.

WORKING TEMPERATURE & PRESSURE

  1/4″ 5/16″ 3/8″ 1/2″
1℃
(34°F)
15.5 bar
(230psi)
15.5 bar
(230psi)
11.5 bar
(170psi)
11.5 bar
(170psi)
20℃
(68°F)
15.5 bar
(230psi)
15.5 bar
(230psi)
11.5 bar
(170psi)
11.5 bar
(170psi)
65℃
(149°F)
10.0 bar
(150psi)
10.0 bar
(150psi)
6.9 bar
(100psi)
6.9 bar
(100psi)



NOTICE

ㆍBefore connecting the tubing into the fitting, make sure the end of the tubing must be cut vertically an must not be damaged/scratched.

ㆍFitting and tubing are recommended using at the potable appliances. Or, the advice from STORMTEC is necessary before the fitting & tubing equipped into a machine.

ㆍMake sure the pressure in the machine has been removed before disconnecting hte fitting and tubing.

ㆍDo not retate, twist, bend and force the fitting and tubing. those excess can cause a malfuncting, leaking and potential defect.

ㆍWe recommend using a fitting spanner while the user disconnects fitting and tubing.

ㆍWe guarantee the fitting and tubing for 2years and it must be changed within the period.

ㆍWe recommend to cut the scratched tubing and reuse it with spotless condition
