Product Name

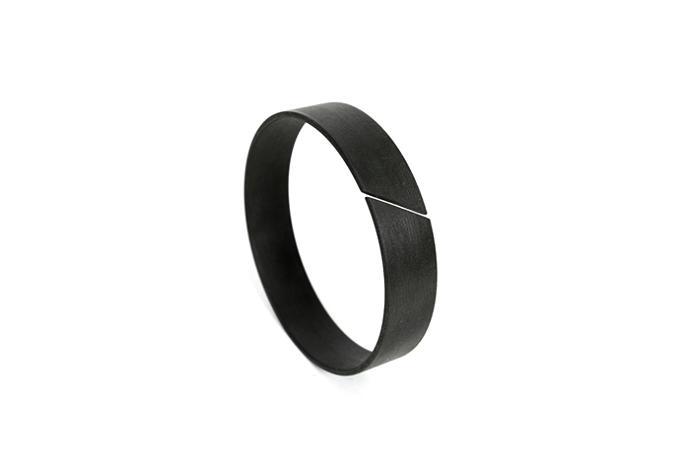

Model CM20
Series Kamglide Wear Ring
Catalog Kamglide WEAR RING.pdf
Product Description

Specifications

About KAMGLIDE

 KAMGLIDE composite bearings(Wear rings) are composite materials with thermosetting resin impregnated with fabric and have excellent strength and durability compared with general thermoplastic materials. The characteristics of KAMGLIDE appear depending on the combination of different resins and fabrics with high strength and high thermal resistance. In addition, glass fibers are used for products that require special strength, and solid lubricants such as PTFE and graphite can be optionally added which is suitable for higher load and speed.



■ Material structure Woven aramid fabric-reinforced phenolic composite with graphite additions

■ Features High wear resistance, suitable for high temperature applications, excellent impact resistance,

 high load capacity, good chemical resistance

■ Application Piston (hydraulic cylinder)

■ Availability O.D. 20~350 mm



■ Properties







Color

Density

[g/cm3]

 Compressive strength

[MPa]

Impact strength

[J/m]

Hardness

[HRM]

Thermal expansion

[10-5/℃]

Swell in water

[%]

Max. Sliding speed

[m/s]

Temperature

[℃]

 CM20

SOLTRI  CM20

Grayish black

1.40

344

50

115

1~3

0.08

1.0

 -40~200
