This product is manufactured by
SOLTECH

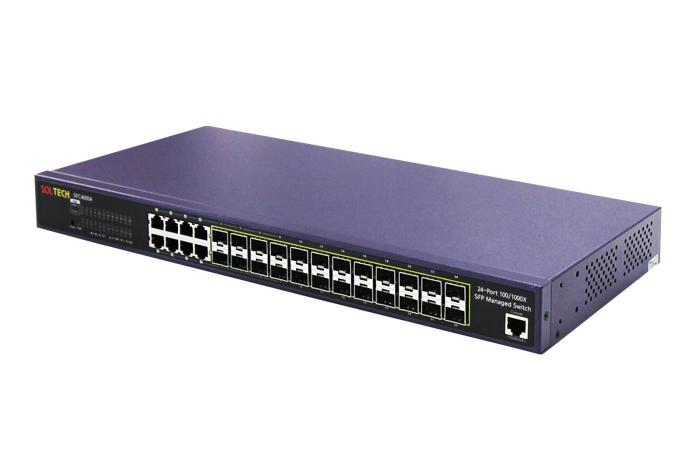

[Discontinued] 1Gbps L2 Managed Ethernet Switch
Model Name
SFC4000A
Data
Catalog-Soltech-Ethernet Switch-1Gbps L2 Managed Ethernet Switch-SFC4000A
Manufacturer information
SOLTECH
Optical communication network equipment supplier, Optical hub, Optical converter, Optical modem, Optical link, Optical cable and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
SOLTECH
Product Type
Machine
Brand
-
SKU
36649
Product Name
[Discontinued] 1Gbps L2 Managed Ethernet Switch
Model Name
SFC4000A
Size
-
Weight
-
Product Details
24-SFP Slots 100/1000Mbps + 8-Ports TP Combo
Web Based Management, SNMP
IGMP Snooping
Port Mirroring
802.3ad Link Aggregation Control Protocol (LACP)
TP Auto Negotiation, AUTO MDI-X
IEEE 802.1p QoS, VoIP QoS, 1Q-in-Q
IEEE 802.1x user certification
IEEE 802.1d & IEEE 802.1 Rapid Spanning Tree
24-SFP Slots 100/1000Mbps + 8-Ports TP(Combo)
- 24-SFP Slots 100/1000Mbps + 8-Ports TP Combo
- Web Based Management, SNMP
- IGMP Snooping
- Port Mirroring
- 802.3ad Link Aggregation Control Protocol (LACP)
- TP Auto Negotiation, AUTO MDI-X
- IEEE 802.1p QoS, VoIP QoS, 1Q-in-Q
- IEEE 802.1x user certification
- IEEE 802.1d & IEEE 802.1 Rapid Spanning Tree
| Technology | - standard | IEEE 802.3 10Base-T IEEE 802.3ad Port trunk with LACP IEEE 802.1Q VLAN Tagging IEEE 802.3u/x/z 100Base-TX/FX, Gigabit SX/LX IEEE 802.1w Rapid spanning tree protocol IEEE 802.1x Port Authentication Network Control |
| Interface | - RJ45 Ports | 8-Ports 10/100/1000Mbps TP Combo Port 1~8, Auto-Negotiation, Auto MDI-X |
| - Fiber Ports | 24-SFP Slots, 1000Mbps-SX/LX SFP 100Mbps-FX SFP, Speed auto detection |
|
| - LED Indicators | Ports: 10/100/1000Mbps Link/Act/Speed, SFP Link | |
| Performance | - Back Plane | Switch Fabric 48Gbps, 8K MAC Address table, Jumbo Frame 10Kbytes |
| - Layer 2 | Management Interfaces: Console, Telnet, Web Browser, SNMPv1, v2c, SNMP v3 VLAN: 802.1Q Tagged Based VLAN, Port VLAN, Q-in-Q, Private VLAN Edge (PVE) Spanning Tree: IEEE 802.1D, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s MSTP IEEE 802.3ad LACP / Static Trunk, IGMP (v1/v2/v3) Snooping IP-Based ACL / MAC-Based ACL, 802.1Q VLAN tag QoS |
|
| Environmental | - Temperature | Operation: -20°C ~70°C, Store: -40°C ~ 80°C |
| - Humidity | 5% ~ 95% (Non-condensing) | |
| Power Supply | - Input Voltage | 100~240VAC, 50/60Hz |
| Mechanical | - Dimensions | 440mm x 200mm x 44.5mm, 1U, 3852g (Full-Package) |
Model Name | Description |
| SFC4000A | 24-SFP Slots 100/1000Mbps + 8-Ports TP Combo, Management Giga Ethernet Switch |
| SFP-SX | SFP(1.25Gbps) Module, Multi-mode, 220/550m, 850nm, LC Type |
| SFP-LX | SFP(1.25Gbps) Module, Single-mode, 20Km, 1310nm, LC Type |
| SFP-MM | SFP(155Mbps) Module, Multi-mode, 2Km, 1310nm, LC Type |
| SFP-SM | SFP(155Mbps) Module, Single-mode, 20Km, 1310nm, LC Type |
