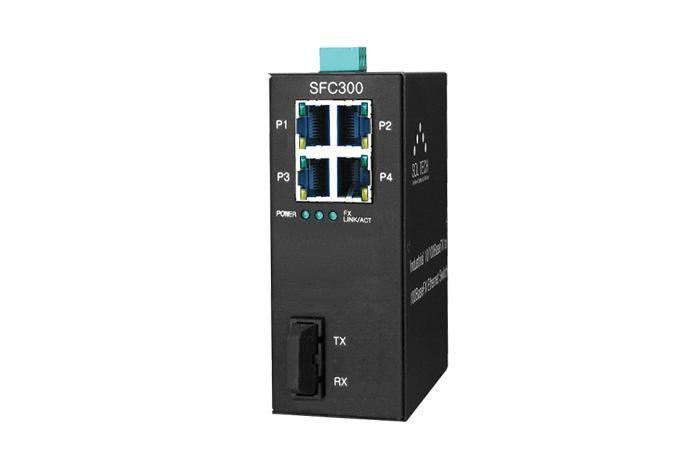

100Mbps Industrial Ethernet Switch

Model Name

SFC300-SCM

Series

Industrial Switch

View AllView All Series

Data

Drawing-Soltech-Industrial Switch-100Mbps Industrial Ethernet Switch-SFC300-SCM

Manufacturer information

SOLTECH

Optical communication network equipment supplier, Optical hub, Optical converter, Optical modem, Optical link, Optical cable and more

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

SOLTECH

Product Type

Machine

Brand

SKU

36634

Product Name

100Mbps Industrial Ethernet Switch

Model Name

SFC300-SCM

Size

Weight

Product Details

Unmanaged 산업용 스위치, 광 1포트(멀티모드, 2km) + TP 4포트(10/100Mbps, 100m)

SFC300-SCM은 100Base-FX 광 1포트를 지원하는 Fast Ethernet Switch HUB 입니다.
10/100Base-TX UTP 연결을 위한 RJ-45 커넥터와 100Base-FX 연결을 위한 광커넥터(SC Type)를 갖추고 있습니다.

Auto-Negotiation, Auto-MDIX 모드를 지원하며 2Km(Multi-Mode)까지 Fiber Network를 구축할 수 있습니다.

More products

ACCESSORIESKBN-FS1000, KBN-FS750B, KBN-FS750W, KBN-FS300F, KBN-SS1000, KBN-SS750B, KBN-SS750W, KBN-LB1000, KBN-LB750, KBN-BP1U, KBN-BP2U, KBN-BP3U, KBN-BP4U, KBN-EP1U, KBN-MP1U5H, KBN-MD1UPVC, KBN-LCDKIT9U, KBN-LCDP3U, KBN-BPDU8W, KBN-BPDU6W, KBN-DRAWER2U, KBN-CAGEM6

BracketSFC100, SFC200, SFC2000, SFC400, SFC300, SFC4000A, SFC4000, 400GM, SFC1100, SFC1200, SFC8000

Fiber Distribution FrameFDF-MINI-XX-4P, FDF-MINI-XX-8P, FDF-MINI-XX-12P, FDF-RACK-XX-4P, FDF-RACK-XX-8P, FDF-RACK-XX-12P, FDF-RACK-XX-24P, FDF-WALL-XX-12P, FDF-WALL-XX-24P, FDF-WALL-XX-48P, OFD-A1-12P, OFD-A1-24P, OFD-B1-12P, OFD-B1-24P, OFD-B2-48P, OFD-C1-72P, OFD-C2-144P

SERVER RACKSOL-VD1000, SOL-VD1000-47U, SOL-VD1000-42U, SOL-VD1000-37U

[Discontinued] Fiber Optic Bypass Switch SFC-Bypass, SFC-Bypass-2SC, SFC-Bypass-4LC

100Mbps SFP Optical TransceiverSFP-SMWB, SFP-SMWB20

1Gbps Ethernet Media ConverterSFC2000-TWLA/20, SFC2000-TWL20A

100Mbps Ethernet Media ConverterSFC200-SCM, M

100Mbps Ethernet Media ConverterSFC200-SCM, I

100Mbps Ethernet Media ConverterSFC200-SCS, M

10Gbps Managed Data Center Ethernet SwitchSFC9300-48HP

10Gbps Managed Data Center Ethernet SwitchSFC9300-24HP

10Gbps Managed Data Center Ethernet SwitchSFC9500A

10Gbps Managed Data Center Ethernet Switch SFC9900A

SOLTECH 6000 Series (10G MODULE - 4SFP+)MPLS-4-SFP+

1/4

SOLTECH

Optical communication network equipment supplier, Optical hub, Optical converter, Optical modem, Optical link, Optical cable and more

Inquiry

Standards	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX/100Base-FX
RJ45 포트	10/100Mbps 4포트, Auto MDI/MDI-X TP/STP Cat. 3, 4, 5, 6 Cable EIA/TIA-568 100-ohm(전송거리 100m)
광포트	100Base-FX 1포트 / 100Base-FX 2포트, SC타입 멀티모드 : 62.5/125㎛(2km) 싱글모드 : 9/125㎛(20km ~ 100km)
Status LEDs	Per unit : Power TX Port (Link/Act, FDX/HDX, Speed) FX Port (Link/Act)
성능	전송속도 : 14,880pps for 10Mbps, 148,810pps for 100Mbps MAC Address : 2K MAC address table
동작환경	동작온도 : -40°C ~ 80°C 보관온도 : -45℃ ~ 85℃ 습도 : 5% ~ 95%(이슬이 맺히지 않을것) 소비전력 : 5.4W 설치방법 : DIN-Rail, Panel mounting
입력전원	DC 12 ~ 48V(터미널블럭), 극성 보호회로
크기	42mm(W) x 87mm(D) x 113mm(H)
