Wide operating temperature : -40~80°C
DC 12~48V
Power polarity reverse protect
Auto MDI-X TP Port and Auto-negotiation
DIN-Rail
4-Ports 10/100Mbps-TP
- High speed and stable data transmission fiber cable connection for wide bandwidth
and long distance Fast Ethernet Solution
- Wide Operating Temperature : -40℃~80℃
- Wide-range redundant DC Power Input DC 12V~48V
- Power polarity reverse protect
- Provide 1-Port 10/100Base-TX, 1-Port 100Base-FX
- Auto MDI-X TP Port and Auto-negotiation
- Dip Switch, 10/100Mbps, Full/Half Duplex, LLCF on/off
| Technology | - standard | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX/100Base-FX |
| Interface | - RJ45 Ports | 1-Port 10/100Base-T(X), Auto-Negotiation, Auto MDI/MDI-X TP/STP Cat. 3, 4, 5, 6 Cable EIA/TIA-568 100-ohm(100m) |
| - Fiber Ports | 1-Port 100Base-FX with SC connector Multi mode: 62.5/125㎛(2km), Single mode: 9/125㎛(~100km) | |
| - LED Indicators | Per unit: Power, Fault TX Port (Link/Act, FDX/HDX, Speed) FX Port (Link/Act) | |
| - Dip Switch | External DIP : Auto-negotiation, 10/100Mbps, Full/Half Duplex, LLCF on/off (SFC300C) | |
| Performance | - Data Forward | 100Mbps |
| Environmental | - Temperature | Operation: -40°C ~ 80°C, Store: -45°C ~ 85°C |
| - Humidity | 5% ~ 95% (Non-condensing) | |
| - Power Consumption | SFC300-SCS : 4.7W, SFC300-SCM : 5.4W, SFC300-SCS2/SCM2 : 5.2W | |
| Power Supply | - Input Voltage | DC 12~48V (Terminal Block), Power polarity reverse protect |
| Mechanical | - Installation | DIN-Rail |
| - Dimensions | 42mm(W) x 87mm(D) x 113mm(H), 674g(Full-Package) |
Model Name | Description |
| SFC300-CM | 1-Fiber Port + 1-TP Port, Multi-mode, 2km, 1310nm, SC Type |
| SFC300-CS | 1-Fiber Port + 1-TP Port, Single-mode, 20km, 1310nm, SC Type |
| SFC300-CSWA/B | 1-Fiber Port + 1-TP Port, Single-mode(WDM), 20km, 1550/1310nm(CSWA), 1310/1550nm(CSWB), SC Type |
| SFC300-SCM | 1-Fiber Port + 4-TP Port, Multi-mode, 2km, 1310nm, SC Type |
| SFC300-SCM2 | 2-Fiber Port + 4-TP Port, Multi-mode, 2km, 1310nm, SC Type |
| SFC300-SCS | 1-Fiber Port + 4-TP Port, Single-mode, 20km, 1310nm, SC Type |
| SFC300-SCS2 | 2-Fiber Port + 4-TP Port, Single-mode, 20km, 1310nm, SC Type |

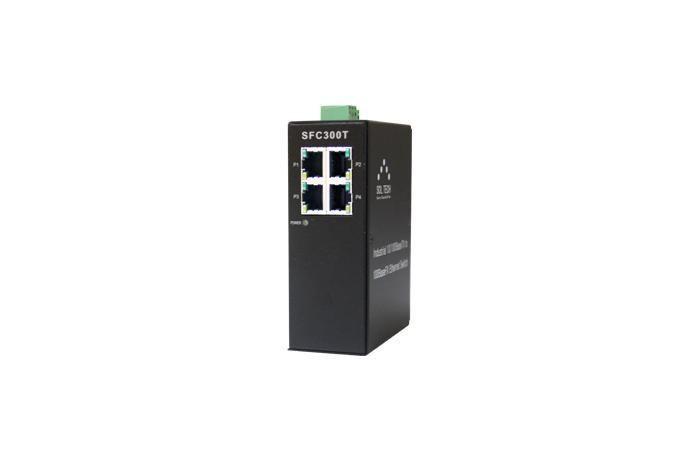

| SFC300-T | 4-Ports 10/100Mbps-TP |
| SFC300-SFP | 4-Ports 10/100Mbps-TP + 2-SFP Slots 100Mbps (Option : SM/MM SFP) |
