This product is manufactured by
SOLTECH
Ethernet Over Coaxial Converter
Model Name
SFC320S
Data
Drawing-Soltech-Ethernet Over Coaxial Converter-SFC320S
Manufacturer information
SOLTECH
Optical communication network equipment supplier, Optical hub, Optical converter, Optical modem, Optical link, Optical cable and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
SOLTECH
Product Type
Machine
Brand
-
SKU
134345
Product Name
Ethernet Over Coaxial Converter
Model Name
SFC320S
Size
-
Weight
-
Product Details
EOC(Ethernet Over Coaxial) 이더넷 스위치, 10/100Mbps TP 4포트 + BNC 1포트(2Km)
SFC320S 제품은 Ethernet 네트워크에 동축케이블(Coaxial Cable)을 사용하는데 필요한 EoC(Ethernet Over Coaxial) Switch 입니다.
동축케이블을 사용하여 IP Data의 장거리 전송(최대 2km)이 가능하므로 기존 UTP케이블을 사용하는 네트워크장비의 전송거리(100m 이하)의 단점을 보완할 수 있습니다.
IP 카메라 설치 공사 시 기설된 동축케이블을 재활용할 수 있고, 공기 단축과 시공비용 절감 효과까지 거둘 수 있습니다.
- EOC(Ethernet Over Coaxial)
- 동축전송 2km
- DIP SW(Master/Slave)
| STANDARD |
IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet |
| RJ45 포트 |
10/100Mbps 1포트, Auto-Negotiation, Auto MDI-X |
| Coaxial |
BNC 1포트, Female connector |
| LED 표시 |
Master, Slave, Coax, LINK/ACT |
| 온도범위 |
동작온도: 0°C ~ 50°C |
| 습도 |
5 ~ 90% (이슬이 맺히지 않을 것) |
| 입력전원 |
DC 12V |
| 크기 |
140mm(W) x 116mm(D) x 26mm(H) |
More products
ACCESSORIESKBN-FS1000, KBN-FS750B, KBN-FS750W, KBN-FS300F, KBN-SS1000, KBN-SS750B, KBN-SS750W, KBN-LB1000, KBN-LB750, KBN-BP1U, KBN-BP2U, KBN-BP3U, KBN-BP4U, KBN-EP1U, KBN-MP1U5H, KBN-MD1UPVC, KBN-LCDKIT9U, KBN-LCDP3U, KBN-BPDU8W, KBN-BPDU6W, KBN-DRAWER2U, KBN-CAGEM6
BracketSFC100, SFC200, SFC2000, SFC400, SFC300, SFC4000A, SFC4000, 400GM, SFC1100, SFC1200, SFC8000
Fiber Distribution FrameFDF-MINI-XX-4P, FDF-MINI-XX-8P, FDF-MINI-XX-12P, FDF-RACK-XX-4P, FDF-RACK-XX-8P, FDF-RACK-XX-12P, FDF-RACK-XX-24P, FDF-WALL-XX-12P, FDF-WALL-XX-24P, FDF-WALL-XX-48P, OFD-A1-12P, OFD-A1-24P, OFD-B1-12P, OFD-B1-24P, OFD-B2-48P, OFD-C1-72P, OFD-C2-144P
ACCESSORIESKBN-FS1000, KBN-FS750B, KBN-FS750W, KBN-FS300F, KBN-SS1000, KBN-SS750B, KBN-SS750W, KBN-LB1000, KBN-LB750, KBN-BP1U, KBN-BP2U, KBN-BP3U, KBN-BP4U, KBN-EP1U, KBN-MP1U5H, KBN-MD1UPVC, KBN-LCDKIT9U, KBN-LCDP3U, KBN-BPDU8W, KBN-BPDU6W, KBN-DRAWER2U, KBN-CAGEM6

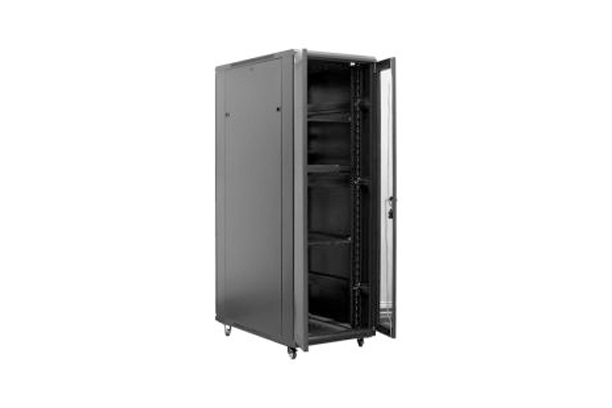

SERVER RACKSOL-VD1000, SOL-VD1000-47U, SOL-VD1000-42U, SOL-VD1000-37U
![[Discontinued] Fiber Optic Bypass Switch](https://cdn.komachine.com/media/product/sol-tech_36633_yigdqm.jpg)
[Discontinued] Fiber Optic Bypass Switch SFC-Bypass, SFC-Bypass-2SC, SFC-Bypass-4LC

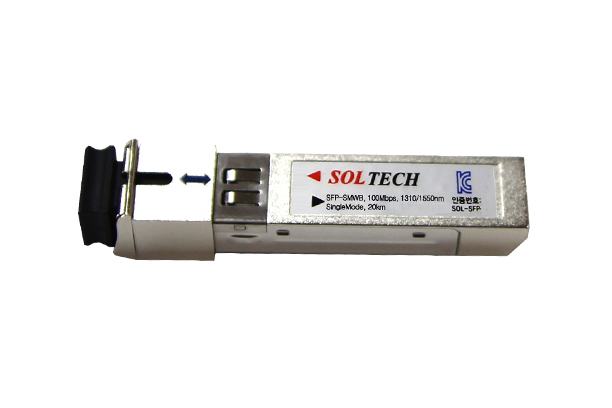

100Mbps SFP Optical TransceiverSFP-SMWB, SFP-SMWB20

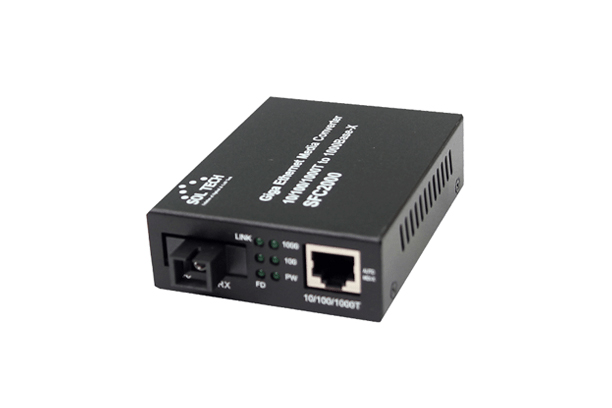

1Gbps Ethernet Media ConverterSFC2000-TWLA/20, SFC2000-TWL20A

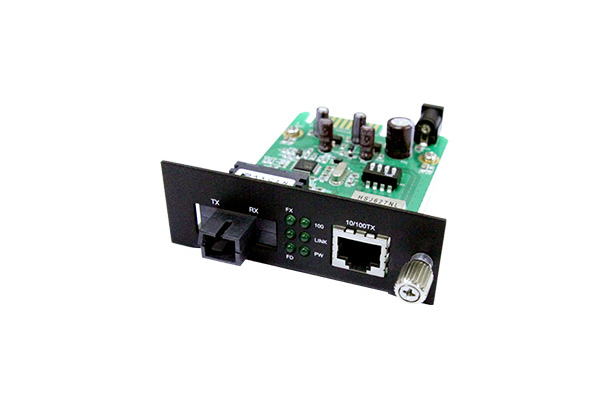

100Mbps Ethernet Media ConverterSFC200-SCM, M
100Mbps Ethernet Media ConverterSFC200-SCM, I

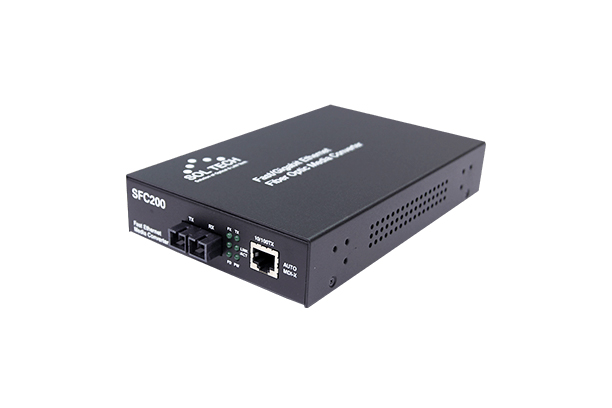

100Mbps Ethernet Media ConverterSFC200-SCS, M

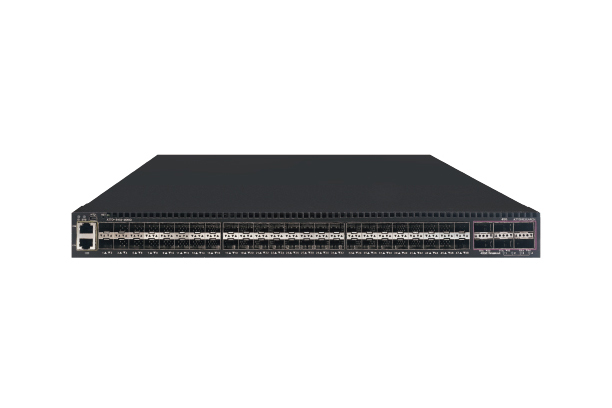

10Gbps Managed Data Center Ethernet SwitchSFC9300-48HP

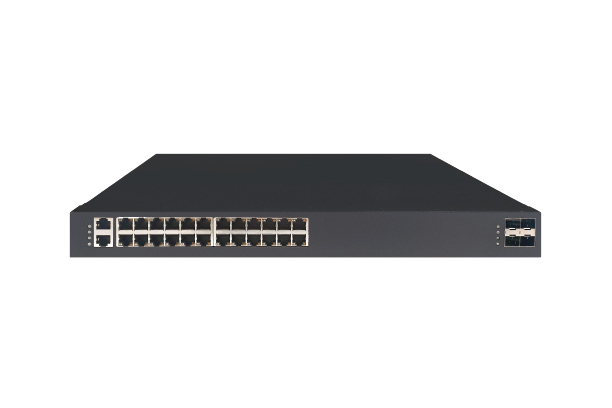

10Gbps Managed Data Center Ethernet SwitchSFC9300-24HP

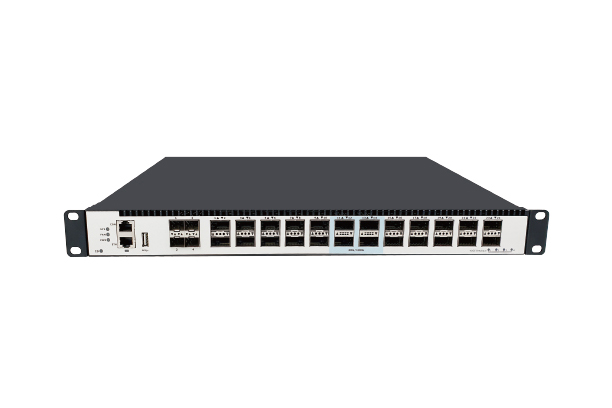

10Gbps Managed Data Center Ethernet SwitchSFC9500A
10Gbps Managed Data Center Ethernet Switch SFC9900A

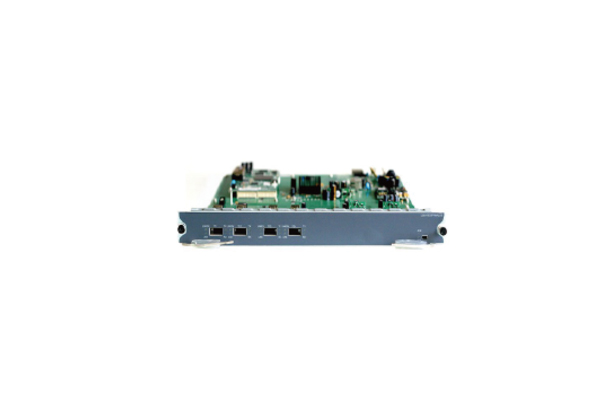

SOLTECH 6000 Series (10G MODULE - 4SFP+)MPLS-4-SFP+
