Flange Band
Model Name
Flange Band
Series
-
Data
-
Manufacturer information
Closed down
provider logo
SMTEK

Chemical Leak Detection Sensor

Problem with product info?
Update request
Manufacturer
SMTEK
Product Type
Machine
Brand
-
SKU
142969
Product Name
Flange Band
Model Name
Flange Band
Size
-
Weight
-
Product Details

  • Specification

  • Material: ETFE
  • Detectable chemicals: Acid/alkaline (> 0.1%), organic solvent, NH3 (>10ppm), H2S (>10ppm)
  • Max. Temperature: 80 oC (acid/alkaline, organic solvent, NH3), 60oC (H2S)
  • Flange Ratings: ASME 150 lb, JIS 10K
  • Total thickness: 0.6mm
Use Product
Name		 Dimension (JIS)
W(mm) x L(mm)		 Detectable Chemicals

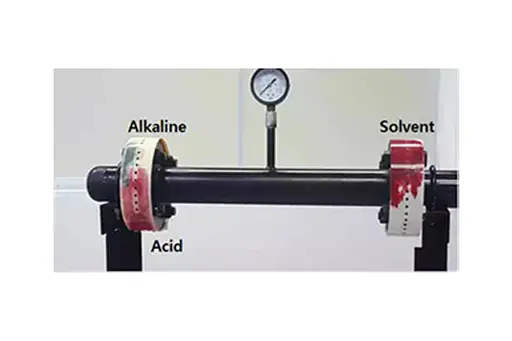

Acid/Alkaline
detection		 FBDT 15A (40x426), 20A(40x441), 25A(40x520), 32A(50x567), 40A(50x583), 50A(50x630), 65A(50x693), 80A(50x724), 100A(50x803), 125A(60x944), 150A(60x1039), 200A(60x1196), 250A(60x1415), 300A(60x1557), 350A(60x1698) Hydrochloric acid, Nitric acid
Sulfuric acid, Hydrofluoric acid
Phosphoric acid, Acetic acid, etc

Sodium hydroxide, Potassium hydroxide,
Ammonium hydroxide, etc
Organic solvent detection FBST Alcohols, Ketones, Esters,
Aromatics, hydrocarbons, etc
Ammonia detection FBNT Ammonia gas, amines
Sulfur compound
detection		 FBHT H2S, mercaptans
