CCD camera system

Model Name

Series

Options

Data

Manufacturer information

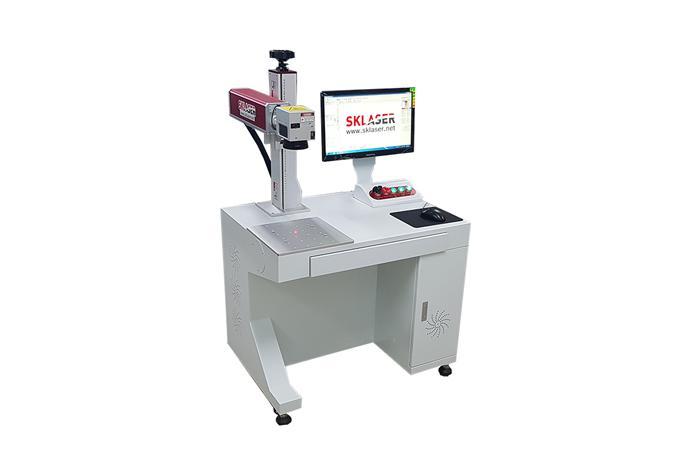

Laser equipment manufacturer, Laser marking machine, Laser welding machine, Laser cutting machine and more

Inquiry

Problem with product info?

Update request

Manufacturer

SKL SYSTEM

Product Type

Machine

Brand

SKU

58757

Product Name

CCD camera system

Model Name

Size

Weight

Product Details

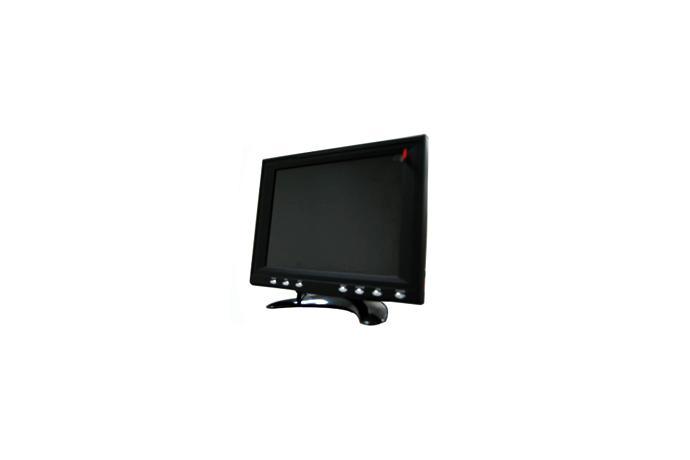

CCD camera system
CCD camera system It is to install into a welder.
CCD screen displays the welding part which facilitates welding.

Technical Data

Product model	Cross Curve moving cross line CCD camera system
Moving adjustable cross line	Moving in X-Y direction is available
Camera type	B&W SONY CCD camera
Horizontal resolution	480 TV lines
Video detector	1/3 "1/3 " B&W CCD
Image pixel	PAL:752(H)×582(V) NTSC:768(H)×494(V)
Electronic shutter	Automatic 1/50(1/60)--1/100000 sec.
Feature	Brightness：0.03Lux/F1.2
	Digital diaphragm, gamma correction
	Auto-exposure
	Auto white balance
	Removing auto flash
	Auto defect pixel correction
	Signal ratio S/N:48dB
	Moving range：50dB(PAL),60dB(NTSC)
	Sync system: simultaneous sync
Signal port	Standard RCA：1.0Vp-p 75Ω channel
Power	Direct current 12.0V
Power consumption	Max. 0.4瓦
Lens port	C/CS CCTV
Size	45mm(L)×45mm(W)×65mm(H)
